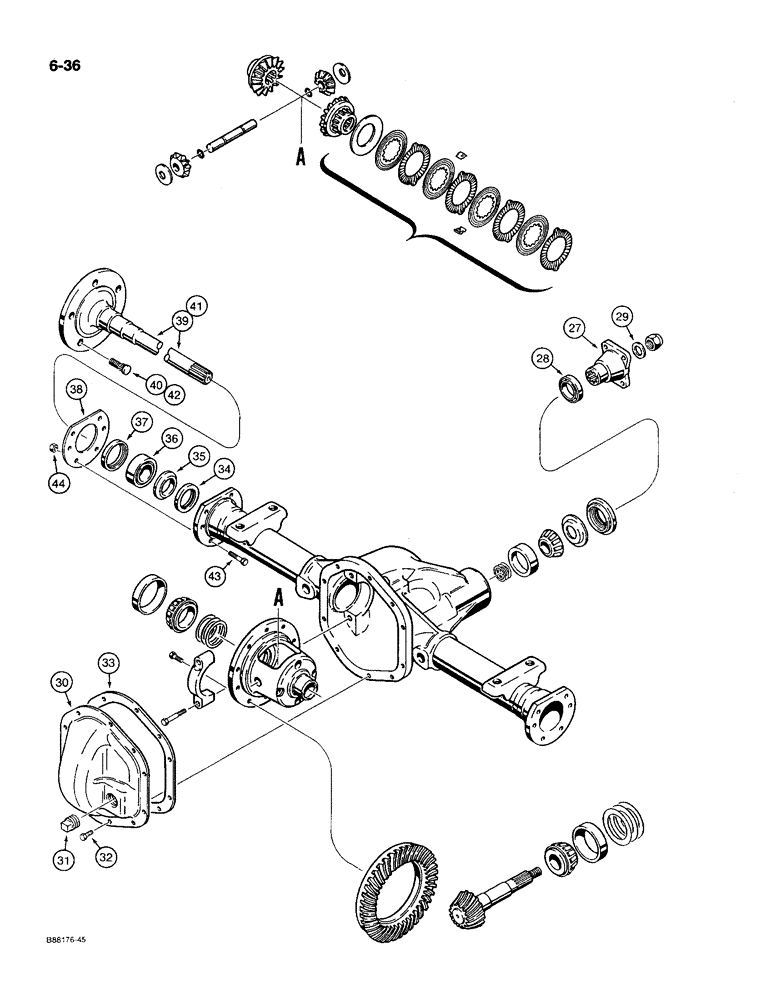

Запчасти Case MAXI-SNEAKER C (6-36) - FRONT AND REAR AXLES (06) - POWER TRAIN

H608661

AXLE

ASSEMBLY - front and rear, continued from Figure 6-35, Includes: Ref. 27-44

2шт.

27

H197582

YOKE

- axle

1шт.

28

H196998

SPACER

SLINGER - oil, yoke

1шт.

29

H197574

WASHER

- special, pinion shaft

1шт.

N8428

COVER

ASSEMBLY - differential, Includes: Ref. 30, 31

1шт.

30

NSS

NOT SOLD SEPARAT

COVER - differential

1шт.

31

221-48

PLUG

- square head, 3/4" NPT

1шт.

32

H226555

FLANGE BOLT

BOLT - special, cover

10шт.

33

REF

INSTRUCTION

GASKET - cover, service with M20704 gasket, see below

1шт.

M20704 GASKET-cover, form-in-place, 28 fluid ounces per tube

1шт.

34

H198093

SEAL ASSY.

SEAL - oil, axle shaft, inner

2шт.

35

N8429

RETAINER

RING - retainer, seal

2шт.

36

H599266

BEARING ASSY

BEARING - wheel

2шт.

37

H757518

SEAL

- oil, axle shaft, outer

2шт.

38

H315127

SEAL ASSY.

RETAINER - wheel bearing

2шт.

H615807

SHAFT

ASSEMBLY - right-hand axle shaft on rear axle, left-hand axle shaft on front axle, Includes: Ref. 39, 40

1шт.

39

NSS

NOT SOLD SEPARAT

SHAFT - axle

1шт.

40

H171090

WHEEL BOLT

BOLT - wheel

5шт.

H615815

SHAFT

ASSEMBLY - left-hand axle shaft on rear axle, right-hand axle shaft on front axle, Includes: Ref. 41, 42

1шт.

41

NSS

NOT SOLD SEPARAT

SHAFT - axle

1шт.

42

H171090

WHEEL BOLT

BOLT - wheel

5шт.

43

H263103

BOLT

BOLT - special, axle retaining

12шт.

44

131-1133

NUT,3/8"-24, GC

NUT - hex, self-locking, 3/8" - 24 NF, plated

12шт.

M20704

ADHESIVE

GASKET - cover, form-in-place, 28 fluid ounces per tube

1шт.
