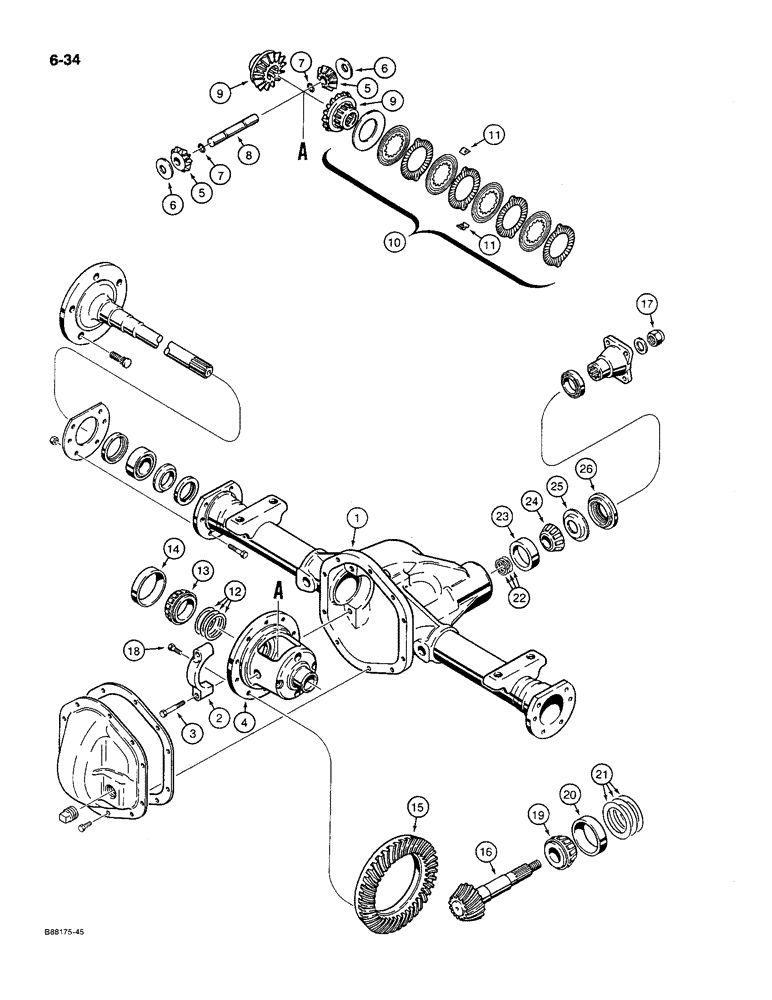

Запчасти Case MAXI-SNEAKER C (6-34) - FRONT AND REAR AXLES (06) - POWER TRAIN

H608661

AXLE

ASSEMBLY - front and rear, for mounting hardware see Figures 6-24 and 6-26

2шт.

H615799

HOUSING

ASSEMBLY - axle, Includes: Ref. 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - differential bearing

2шт.

3

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

4шт.

4

H226688

CASE

- differential, two pinion

1шт.

H572362

KIT

GEAR ASSEMBLY - matched set, differential, two pinion, Includes: Ref. 5-9

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR - pinion

2шт.

6

H226746

WASHER

- thrust, pinion

2шт.

7

H226738

RING, SNAP

RING - snap, pinion

2шт.

8

NSS

NOT SOLD SEPARAT

SHAFT - pinion

1шт.

9

NSS

NOT SOLD SEPARAT

GEAR - side, axle shaft

2шт.

10

H572370

DISC

ASSEMBLY - matched set, plates and clips, two pinion differential, Includes: Ref. 11

1шт.

11

H226753

CLIP

- plate

4шт.

12

H198259

SHIM,.003" Thk

Case adjustment (0.08 mm) .003" Thk

1шт.

12

H198267

SHIM,.005" Thk

Case adjustment (0.13 mm) .005" Thk

1шт.

12

H198275

SHIM,.010" Thk

Case adjustment (0.25 mm) .010" Thk

1шт.

12

H198283

SHIM,.030" Thk

Case adjustment (0.76 mm) .030" Thk

1шт.

13

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

BEARING - tapered roller, axle shaft

2шт.

14

H753624

BEARING CUP

CUP - tapered roller bearing, axle shaft

2шт.

H621516

GEAR WHEEL

PINION AND RING GEAR ASSEMBLY - matched set, axle, Includes: Ref. 15-17

1шт.

15

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

1шт.

16

NSS

NOT SOLD SEPARAT

SHAFT - pinion, input

1шт.

17

H197566

NUT

- special, yoke retaining

1шт.

18

H225219

BOLT (SPREADER)

SCREW - ring gear mounting

10шт.

19

H753590

BEARING

- tapered roller, pinion shaft, inner

1шт.

20

H753582

BEARING CUP

CUP - tapered roller bearing, pinion shaft, inner

1шт.

21

H198150

SHIM,.003" Thk

Pinion shaft (0.08 mm), Inner .003" Thk

1шт.

21

H198168

SHIM,.005" Thk

Pinion shaft (0.13 mm), Inner .005" Thk

1шт.

21

H198176

SHIM,.010" Thk

Pinion shaft (0.25 mm), Inner .010" Thk

1шт.

22

H198010

SHIM,.003" Thk

Pinion shaft (0.08 mm), Outer .003" Thk

1шт.

22

H198028

SHIM,.005" Thk

Pinion shaft (0.13 mm), Outer .005" Thk

1шт.

22

H198036

SHIM,.010" Thk

Pinion shaft (0.25 mm), Outer .010" Thk

1шт.

22

H198044

SHIM,.030" Thk

Pinion shaft (0.76 mm), Outer .030" Thk

1шт.

23

A26746

BEARING CUP

CUP - tapered roller bearing, pinion shaft, outer

1шт.

24

A31229

CONE

BEARING - tapered roller, pinion shaft, outer

1шт.

25

H198002

WASHER

SLINGER - oil, pinion shaft, inner

1шт.

26

N8427

OIL SEAL

SEAL - oil, pinion shaft

1шт.
