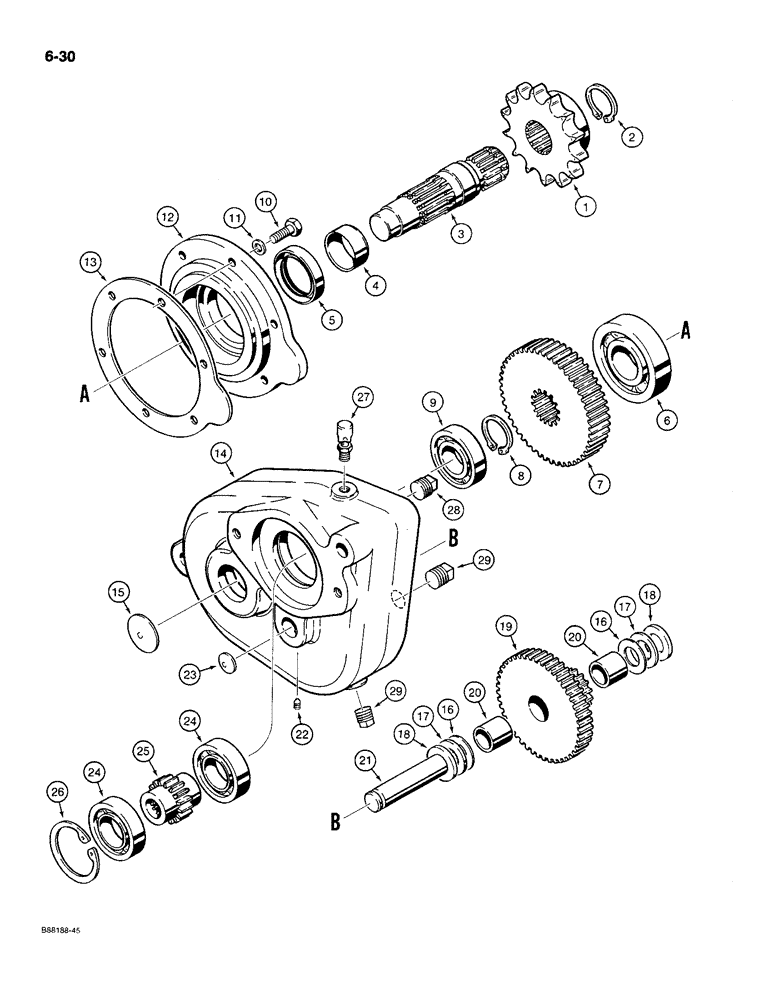

Запчасти Case MAXI-SNEAKER C (6-30) - TRANSMISSION ASSEMBLY, USED ON MODELS PRIOR TO P.I.N. 1214519 (06) - POWER TRAIN

H638676

GEARBOX ASSY

TRANSMISSION ASSEMBLY - no longer available, service with individual components listed below, for mounting hardware see Figure 6-28, Includes: Ref. 1-29

1шт.

1

H189613

DRIVE SPROCKET

SPROCKET - transmission, chain drive

1шт.

H588145

GEARBOX ASSY

GEARBOX ASSEMBLY - transmission, Includes: Ref. 2-29

1шт.

2

A17903

SNAP RING,#156, Ext

RING, Snap, , sprocket #156, Ext

1шт.

H559211

SHAFT ASSY.

SHAFT ASSEMBLY - output, Includes: Ref. 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

SHAFT - output

1шт.

4

H189654

SLEEVE CYLINDER

SLEEVE - wear

1шт.

5

H753087

SEAL

SEAL - ouput shaft

1шт.

6

H753095

BALL BEARING

BEARING - ball, output shaft, large

1шт.

7

H189647

GEAR WHEEL

GEAR - output shaft

1шт.

8

A17903

SNAP RING,#156, Ext

RING, Snap, , gear #156, Ext

1шт.

9

H752501

BALL BEARING

BEARING - ball, output shaft, small

1шт.

10

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

11

H753467

RING

WASHER - special, bolt

6шт.

12

H189134

CAP

COVER - housing

1шт.

13

H189712

GASKET

- cover

1шт.

14

H256750

CASE

HOUSING - gearbox

1шт.

15

41-27

PLUG,Exp, 1 11/16"

- expansion, 1-11/16"

1шт.

16

H199596

SPACER

- .030" (9.76 mm) thick

1шт.

17

H199604

SPACER

- .060" (1.52 mm) thick

1шт.

18

H189662

SPACER

- .125" (3.18 mm) thick

1шт.

H559203

PINION

GEAR ASSEMBLY - cluster, intermediate, Includes: Ref. 19, 20

1шт.

19

NSS

NOT SOLD SEPARAT

GEAR - cluster, intermediate

1шт.

20

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BUSHING - cluster gear

2шт.

21

H189639

SHAFT

- cluster gear

1шт.

22

178-26

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - set, hex socket headless, 1/4" - 20 NC x 3/8"

1шт.

23

41-14

PLUG

- expansion, 7/8"

1шт.

24

H753103

BALL BEARING

BEARING - ball, input gear

2шт.

25

H189621

PINION

GEAR - input drive

1шт.

26

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , input gear 2.44", Int, #244

1шт.

27

L33264

BREATHER

- housing

1шт.

28

221-1047

PLUG

- pipe, square head, 1/2" NPT

2шт.

29

221-48

PLUG

- pipe, square head, 3/4" NPT

1шт.
