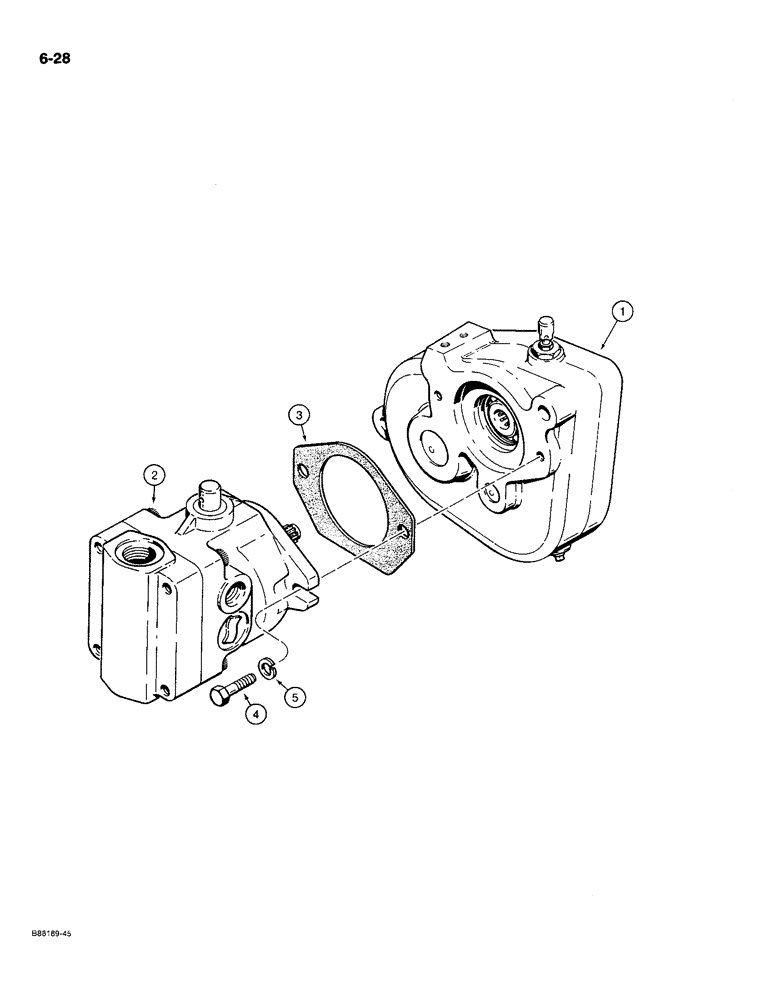

Запчасти Case MAXI-SNEAKER C (6-28) - TRANSMISSION AND MOTOR ASSEMBLY (06) - POWER TRAIN

H587733

MOTOR

TRANSMISSION AND MOTOR ASSEMBLY - no longer available, service with individual components listed below, Includes: Ref. 1-5

1шт.

1

H638676

GEARBOX ASSY

TRANSMISSION ASSEMBLY - used on models prior to P.I.N., no longer available, service with individual components on Figure 6-30, Serial Range: -1214519

1шт.

For models with P.I.N. 1214519 and after see Figure 6-32 for transmission assembly.

1шт.

2

H585299

MOTOR

ASSEMBLY - ground drive, parts list Figure 6-12

1шт.

3

H44727

GASKET

- motor

1шт.

4

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.
