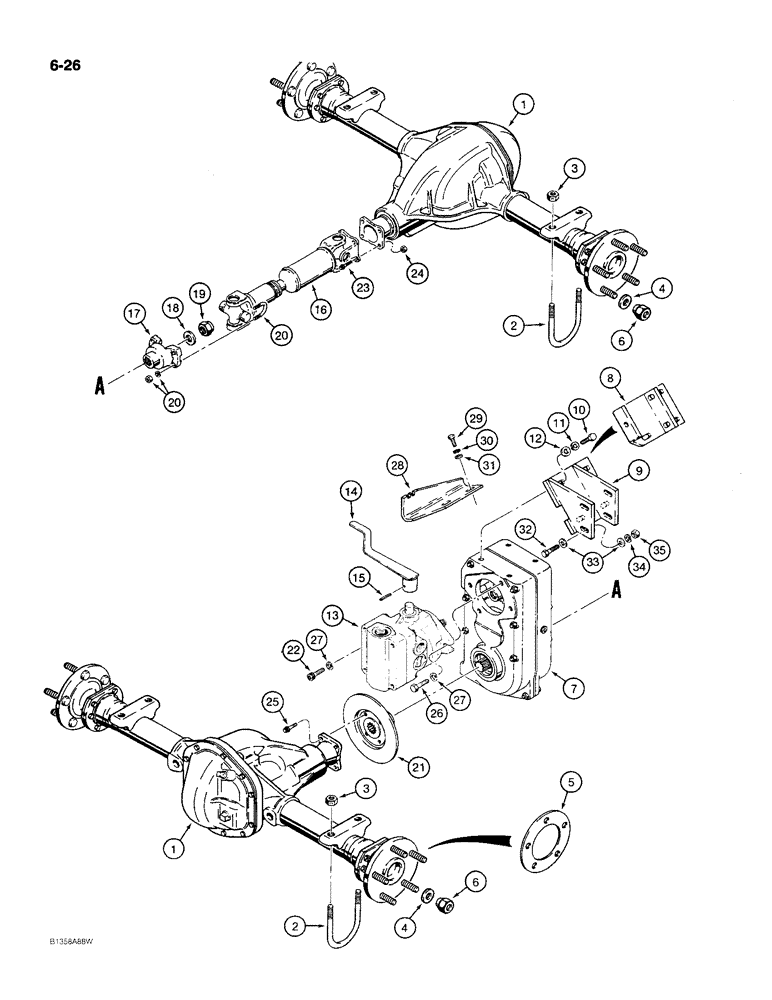

Запчасти Case MAXI-SNEAKER C (6-26) - DRIVE LINE MOUNTING, USED ON MODELS WITH P.I.N. 1214519 AND AFTER (06) - POWER TRAIN

1

H608661

AXLE

ASSEMBLY - front and rear, see parts list Figures 6-34 and 6-36

2шт.

2

H184135

HARDWARE

U-BOLT - axle mounting

4шт.

3

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

8шт.

4

195-541

WASHER,5/8", SAE

- flat, 5/8", plated, used on models prior to P.I.N., Serial Range: -1242339

20шт.

5

H433304

SPACER

- wheel, used on models with PIN 1242339 - P.I.N. 1242388

4шт.

6

N4221

WHEEL NUT

- wheel

20шт.

7

H660126

TRANSMISSION

ASSEMBLY - ground drive, see parts list Figure 6-32

1шт.

8

H664482

MOUNTING PARTS

BRACKET - transmission mounting, used on models prior to P.I.N., Serial Range: -1214573

1шт.

9

H669291

PLATE

BRACKET - transmission mounting, used on models with P.I.N. and after, Start Serial: 1214573

1шт.

10

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

13

H585299

MOTOR

ASSEMBLY - ground drive, parts list Figure 6-12

1шт.

14

H615765

LEVER

- ground drive motor

1шт.

15

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

16

H663724

DRIVE SHAFT

SHAFT ASSEMBLY - drive, parts list Figure 6-38

1шт.

17

H208488

YOKE

- transmission to drive shaft

1шт.

18

H224501

WASHER

- flate, 7/8", special

1шт.

19

131-1173

NUT,7/8"-14, GA

- hex, self-locking, 7/8" - 14 NF, plated

1шт.

20

H183566

BOLT

U-BOLT - special, includes hardware

2шт.

21

H662262

FLANGE

- companion

1шт.

22

165-149

HEX SOC SCREW,1/2" - 13 x 1 1/4"

BOLT - hex socket head, 1-1/2" - 5 NC x 1-1/4"

1шт.

23

H304691

BOLT,Hex, 3/8" - 24 x 27.38mm

BOLT - special, yoke mounting

4шт.

IF A 12 PT HEAD IS NEEDED USE PART 166-543.

1шт.

24

131-1133

NUT,3/8"-24, GC

NUT - hex, self-locking, 3/8" - 24 NF, plated

8шт.

25

H304691

BOLT,Hex, 3/8" - 24 x 27.38mm

BOLT - special, yoke mounting

4шт.

26

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

27

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

28

H415356

BRACKET

- shift lever

1шт.

29

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

30

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

31

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

32

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

33

H274894

WASHER

- flat, 17/32" ID x 1-5/64" OD, plated, special

8шт.

34

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

35

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

4шт.
