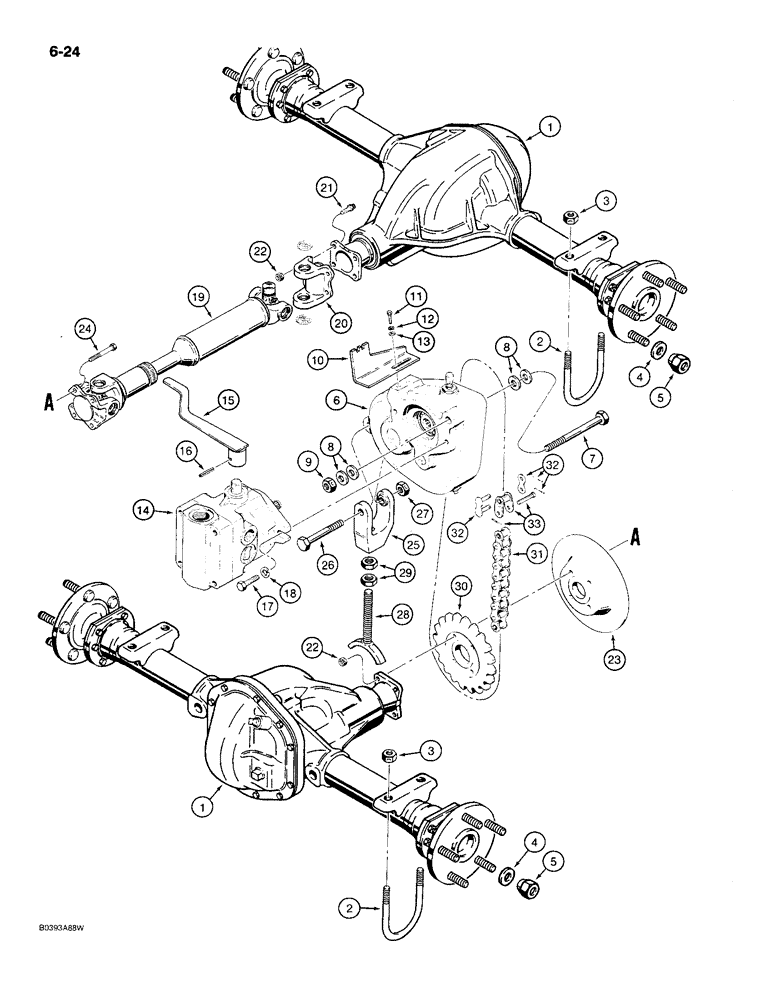

Запчасти Case MAXI-SNEAKER C (6-24) - DRIVE LINE MOUNTING, USED ON MODELS PRIOR TO P.I.N. 1214519 (06) - POWER TRAIN

1

H608661

AXLE

ASSEMBLY - front and rear, parts list Figures 6-34 and 6-36

2шт.

2

H184135

HARDWARE

U-BOLT - axle mounting

4шт.

3

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

8шт.

4

195-541

WASHER,5/8", SAE

- flat, 5/8", plated

20шт.

5

N4221

WHEEL NUT

- special, wheel

20шт.

6

H638676

GEARBOX ASSY

TRANSMISSION ASSEMBLY - ground drive, parts list Figure 6-30

1шт.

7

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex head, 5/8" - 11 NC x 6", plated

1шт.

8

195-541

WASHER,5/8", SAE

- flat, 5/8", plated

4шт.

9

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated

1шт.

10

H277012

CHANNEL

BRACKET - transmission mounting

1шт.

11

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

14

H585299

MOTOR

ASSEMBLY - ground drive, parts list Figure 6-12

1шт.

15

H615765

LEVER

- ground drive motor

1шт.

16

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

17

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

18

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

19

H625194

DRIVE ASSY.

SHAFT ASSEMBLY - drive, parts list Figure 6-38

1шт.

20

H251777

FLANGE

YOKE - axle to drive shaft

1шт.

21

H304691

BOLT,Hex, 3/8" - 24 x 27.38mm

BOLT - special, yoke mounting

4шт.

IF A 12 PT HEAD IS NEEDED USE PART 166-543.

1шт.

22

131-1133

NUT,3/8"-24, GC

NUT - hex, self-locking, 3/8" - 24 NF, plated

8шт.

23

H261370

DISC

- brake

1шт.

24

H277665

BOLT

BOLT - special, 3/8" - 24 NF x 2-7/16"

4шт.

25

H253641

YOKE

CLEVIS - transmission adjustment

1шт.

26

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex head, 5/8" - 11 NC x 4", plated

1шт.

27

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated

1шт.

28

H657957

SADDLE

YOKE - adjusting, drive chain

1шт.

29

129-148

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4" - 10 NC, plated

2шт.

30

H277483

DRIVE SPROCKET

SPROCKET - drive

1шт.

31

H758664

CHAIN (AG)

CHAIN ASSEMBLY - drive, Includes: Ref. 32

1шт.

32

D53027

LINK

ASSEMBLY - connecting

1шт.

33

H750562

CHAIN (AG)

CONNECTOR ASSEMBLY - chain, offset

1шт.
