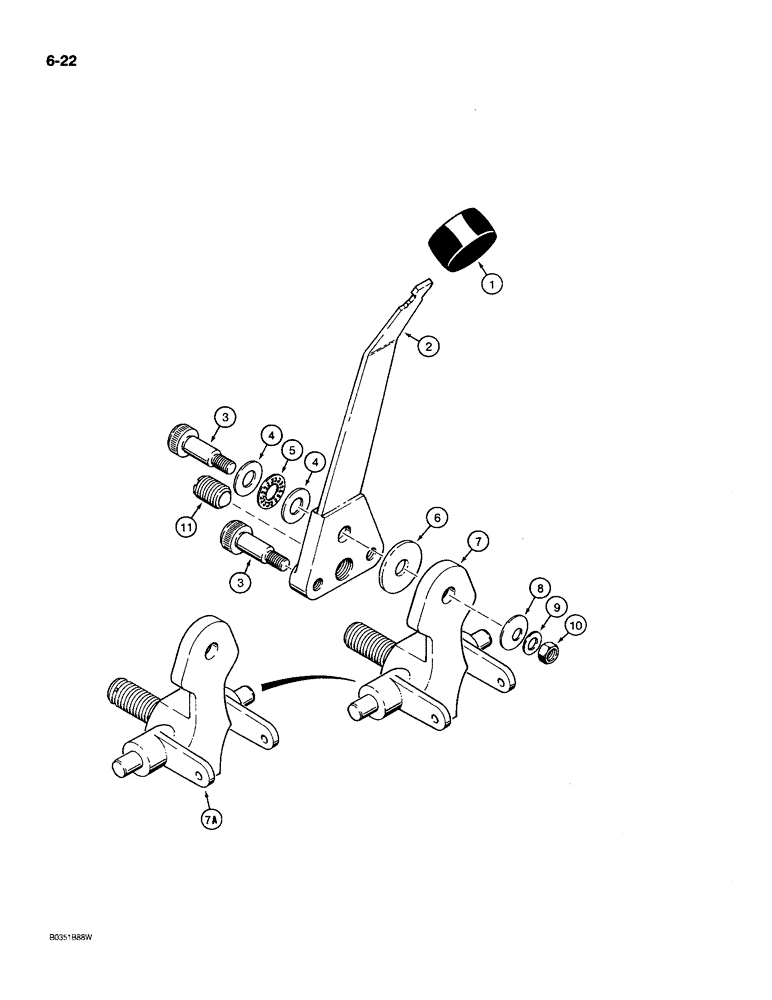

Запчасти Case MAXI-SNEAKER C (6-22) - CREEP CONTROL, USED ON MODELS WITH P.I.N. 1242166 AND AFTER (06) - POWER TRAIN

1

A177435

BALL KNOB

KNOB - creep control

1шт.

2

H672527

HANDLE

- creep control

1шт.

3

H404822

BOLT

- shoulder, special

3шт.

4

H405035

BEARING WASHER

WASHER - thrust, creep control handle

2шт.

5

H405043

BEARING WASHER,12.75mm ID x 23.55mm OD x 1.98mm Thk

BEARING - thrust

1шт.

6

H429894

WASHER

DISC - friction

1шт.

7

H433501

PIVOT

BELLCRANK - drive control, used on models with P.I.N. 1242166 - P.I.N. JAF0021855

1шт.

7a

H435855

PIVOT

BELLCRANK - drive control, used on models with P.I.N. and after, Start Serial: JAF0021856

1шт.

8

D33544

WASHER

SPRING - Belleville, washer

1шт.

9

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

10

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

11

H404731

GUIDE

SCREW - special, detent

1шт.
