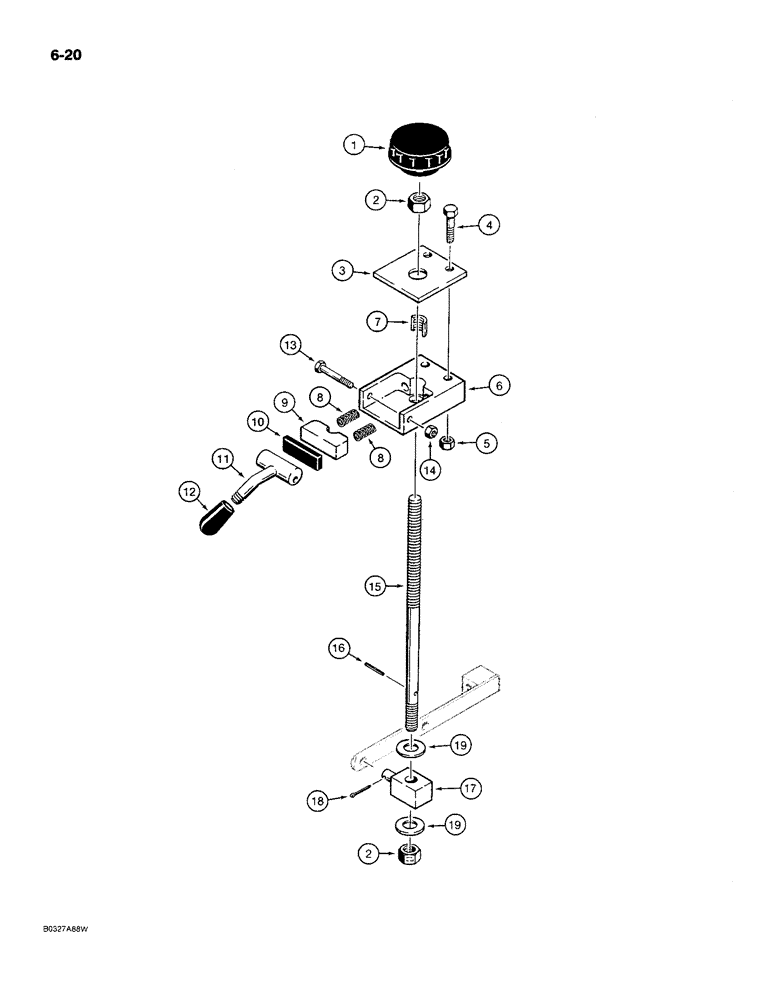

Запчасти Case MAXI-SNEAKER C (6-20) - CREEP CONTROL, USED ON MODELS PRIOR TO P.I.N. 1242166 (06) - POWER TRAIN

1

H239004

KNOB

- adjusting

1шт.

2

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.

3

H233767

COVER ASSY

PLATE - cover

1шт.

4

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

5

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

H608885

CONTROL BLOCK

BASE ASSEMBLY - control, Includes: Ref. 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

BASE - control, order H608885 base assembly

1шт.

7

H299164

BUSHING

- base, order H608885 base assembly

1шт.

8

H253864

VALVE SPRING

SPRING - release

2шт.

9

H299131

BLOCK

- shaft, locking

1шт.

10

H299149

BLOCK

CUSHION - friction

1шт.

11

H618504

CAM

LEVER - cam

1шт.

12

A14051

GRIP

KNOB - lever

1шт.

13

113-46

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

- hex head, 1/4" - 20 NC x 2-3/4", plated

1шт.

14

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

15

H255158

CONTROL BLOCK

SHAFT - adjusting

1шт.

16

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

17

H237701

BLOCK

- control, see Figure 6-20 for creep control link to ground drive control

1шт.

18

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

19

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

2шт.
