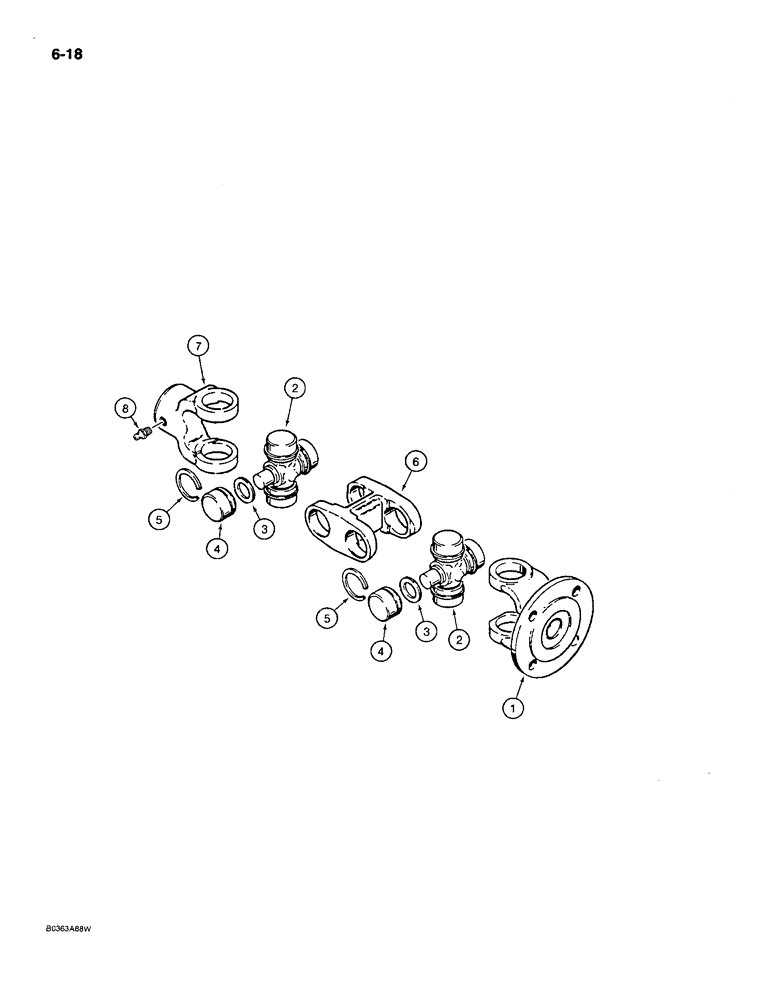

Запчасти Case MAXI-SNEAKER C (6-18) - UNIVERSAL JOINT ASSEMBLY (06) - POWER TRAIN

H582007

JOINT TURNING

JOINT ASSEMBLY - universal, for mounting hardware see Figure 6-06, Includes: Ref. 1-8

1шт.

1

H245902

FORK

YOKE - flanged end, Includes: Ref. 2-5

1шт.

H582437

BEARING ASSY

BEARING AND CROSS ASSEMBLY - universal joint

2шт.

2

NSS

NOT SOLD SEPARAT

CROSS - universal joint

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - bearing

4шт.

4

NSS

NOT SOLD SEPARAT

BEARING - universal joint

4шт.

5

H245910

RING, SNAP

RING - snap, bearing retaining

4шт.

6

H244855

COUPLING

YOKE - center, double pivot, universal joint

1шт.

7

H244848

FORK

YOKE - splined end, universal joint

1шт.

8

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4"-28 NF

1шт.
