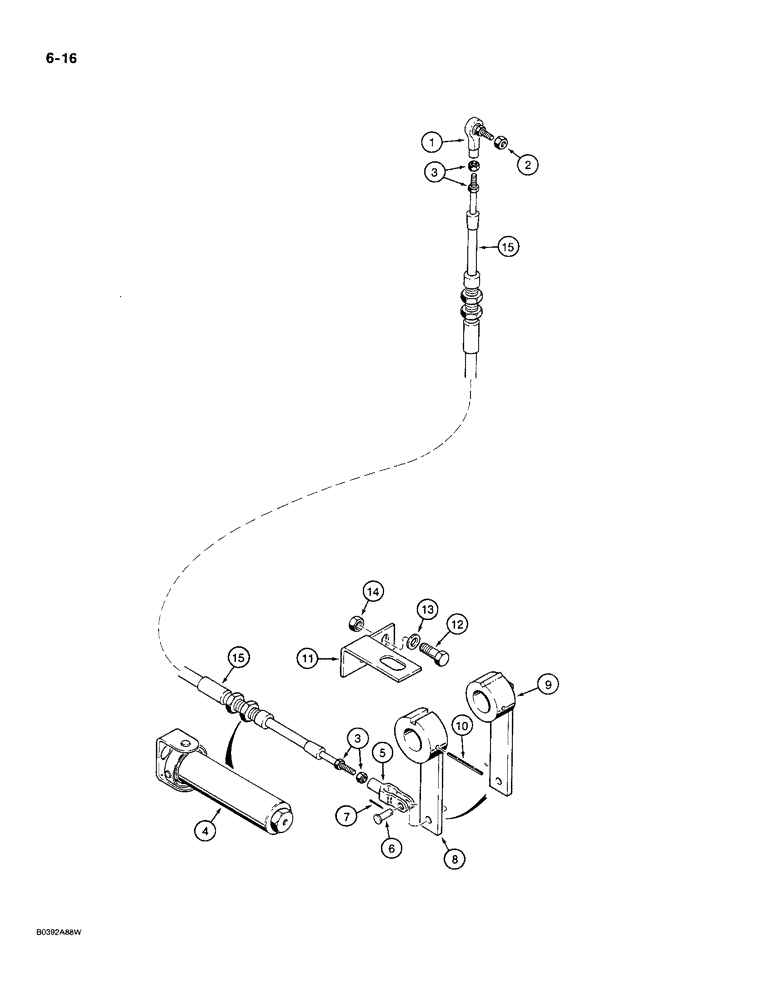

Запчасти Case MAXI-SNEAKER C (6-16) - GROUND DRIVE CONTROL, USED ON MODELS WITH P.I.N. 1242166 AND AFTER (06) - POWER TRAIN

1

H358374

PIVOT,1/4" - 28 x 1-1/3"

JOINT - ball, 1/4" - 28 NF, cable, at control link

1шт.

2

131-1168

LOCK NUT,1/4"-28, GA

NUT, LOCK, 1/4"-28, GA

1шт.

3

425-154

JAM NUT,Jam, 1/4"-28, G5

4шт.

4

H412783

VALVE

CYLINDER - netural centering, individual components not serviced separately

1шт.

5

H165688

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - special, 1/4"

1шт.

6

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

PIN - clevis, 1/4" x 51/64", special

1шт.

7

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

8

H654541

ARM/LIFTING DEVICE

ARM - ground drive pump, used on models prior to P.I.N., Serial Range: -1242277

1шт.

9

H672292

ARM

- ground drive pump, used on models with P.I.N. and after, Start Serial: 1242277

1шт.

10

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

1шт.

11

H401943

BRACKET

- neutral start switch to pump arm, used on models prior 1242277, Serial Range: -1242277

1шт.

11

H433830

BRACKET

- neutral start switch to pump arm, used on models with P.I.N. 1242277 - P.I.N. JAF0021855

1шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Used with Ref. 11 bracket Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

13

195-522

WASHER,5/16"

- flat, , plated, used with Ref. 11 bracket 5/16"

2шт.

14

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated, Used with Ref. 11 bracket

2шт.

15

H644401

CABLE

- ground drive control

1шт.
