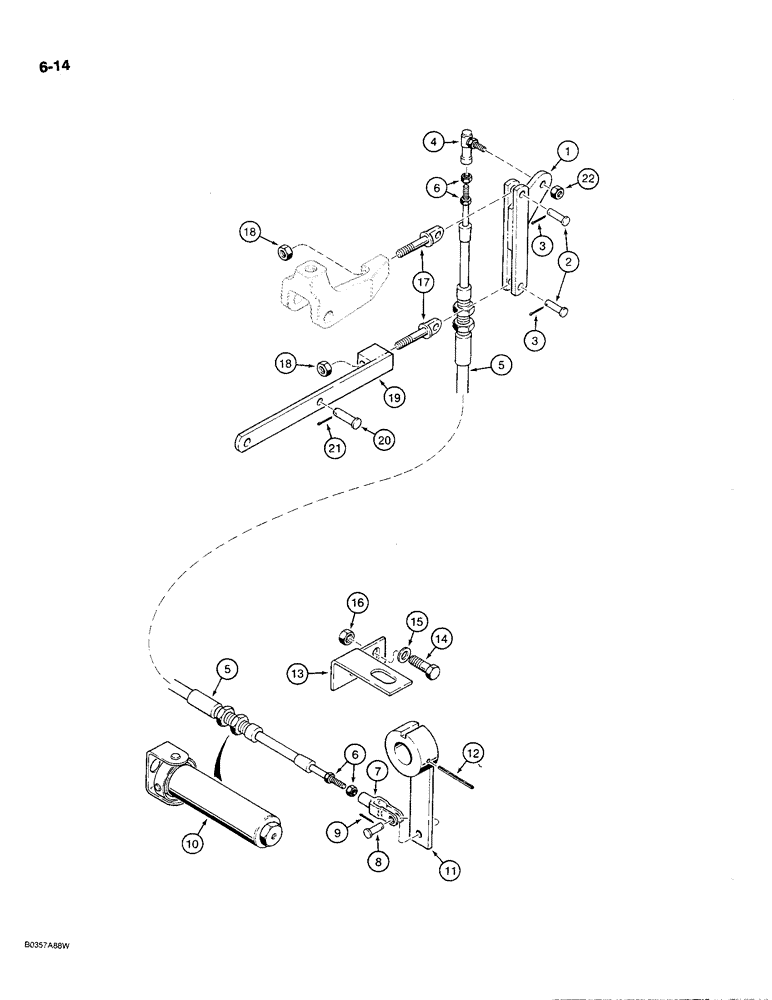

Запчасти Case MAXI-SNEAKER C (6-14) - GROUND DRIVE CONTROL, USED ON MODELS PRIOR TO P.I.N. 1242166 (06) - POWER TRAIN

1

H587352

CONTROL

LINK - control

1шт.

2

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

PIN - clevis, 1/4" x 51/64", special

2шт.

3

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

2шт.

4

H169920

BALL JOINT

JOINT - ball, 1/4" - 28 NF, cable, at control link

1шт.

5

H644401

CABLE

- ground drive control

1шт.

6

425-154

JAM NUT,Jam, 1/4"-28, G5

4шт.

7

H165688

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - special, 1/4"

1шт.

8

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

PIN - clevis, 1/4" x 51/64", special

1шт.

9

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

10

H412783

VALVE

CYLINDER - neutral centering, component parts not serviced separately

1шт.

11

H654541

ARM/LIFTING DEVICE

ARM - ground drive pump

1шт.

12

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

1шт.

13

H401943

BRACKET

- neutral start switch to pump arm

1шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

15

195-522

WASHER,5/16"

- flat, , plated 5/16"

2шт.

16

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

17

H217109

BOLT

BOLT - eye, control link

2шт.

18

131-149

LOCK NUT,5/16"-24, GA

NUT - hex, self-locking, 5/16" - 24 NF, plated

2шт.

19

H588798

LINK

- creep control, see page 6-21 for creep control mounting

1шт.

20

H44289

CLEVIS COUPLING

PIN - clevis, special, creep control link

1шт.

21

132-340

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

1шт.

22

131-1168

LOCK NUT,1/4"-28, GA

NUT, LOCK, 1/4"-28, GA

1шт.
