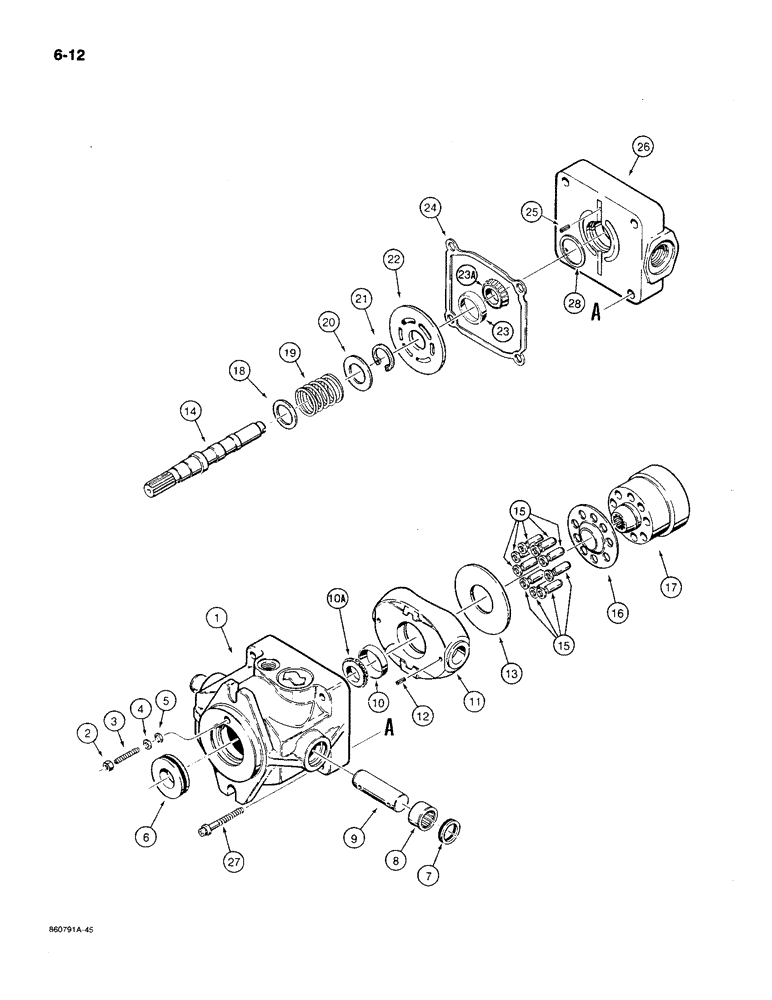

Запчасти Case MAXI-SNEAKER C (6-12) - GROUND DRIVE MOTOR (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
H585299
MOTOR
ASSEMBLY - ground drive, for mounting hardware see Figures 6-24 and 6-26, Includes: Ref. 1-28
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING - output shaft end
1шт.
2
86637933
JAM NUT,5/16" - 24, Gr 5
Jam, 5/16"- 24, G5
1шт.
3
84-528
SET SCREW - hex socket, cup point, 5/16" - 24 NF x 1-3/4" Hex Soc, 5/16"-24 x 1 3/4"
1шт.
4
H354043
WASHER
- special
1шт.
5
H264382
WASHER
- special, threaded
1шт.
6
H756296
SEAL
- shaft, output
1шт.
7
H354001
SEAL ASSY.
SEAL - shaft, swash plate
2шт.
8
A12652
NEEDLE BEARING,1" ID x 1.251" OD x 0.75"
BEARING - needle, swash plate
2шт.
9
H351429
SHAFT
- swash plate
2шт.
10
463911R91
ROLLER BEARING,1" ID x 0.58"
CONE - bearing, output shaft, at housing
1шт.
10a
D29267
BEARING CUP,1.98" OD x 0.42"
CUP - tapered roller bearing, output shaft, at housing
1шт.
11
N7975
LARGE PLATE
PLATE - swash
1шт.
12
138-2069
PIN,5/16" x 3/4", Coiled
4шт.
13
H351379
PLATE, THRUST
PLATE - thrust
1шт.
14
N8389
SHAFT
- output
1шт.
H632489
BLOCK
ASSEMBLY - cylinder, motor, Includes: Ref. 15-21
1шт.
15
NSS
NOT SOLD SEPARAT
PISTON - motor
9шт.
16
NSS
NOT SOLD SEPARAT
RETAINER - piston
1шт.
17
NSS
NOT SOLD SEPARAT
BLOCK - piston cylinder
1шт.
18
NSS
NOT SOLD SEPARAT
WASHER - thrust, spring, inner
1шт.
19
NSS
NOT SOLD SEPARAT
SPRING - block
1шт.
20
NSS
NOT SOLD SEPARAT
WASHER - spring, outer
1шт.
21
NSS
NOT SOLD SEPARAT
RING - snap, cylinder block
1шт.
22
H351387
LARGE PLATE
PLATE - valve
1шт.
23
B12410
BEARING, CUP,1.782" OD
CUP - tapered roller bearing, output shaft, at end cap
1шт.
23a
B12411
ROLLER BEARING,0.75" ID x 0.655"
BEARING - tapered roller, output shaft, at end cap
1шт.
24
H305441
GASKET
- housing
1шт.
25
H351445
PIN
- housing alignment
1шт.
26
H351452
CAP
- end, motor
1шт.
27
61-736
HEX SOC SCREW,7/16"-14 x 2 1/4"
BOLT - hex socket head, 7/16" - 14 NC x 2-1/4"
4шт.
28
N9525
SHIM,.010" Thk
(0.25 mm) .010" Thk
1шт.
Выбрано товаров: 32
