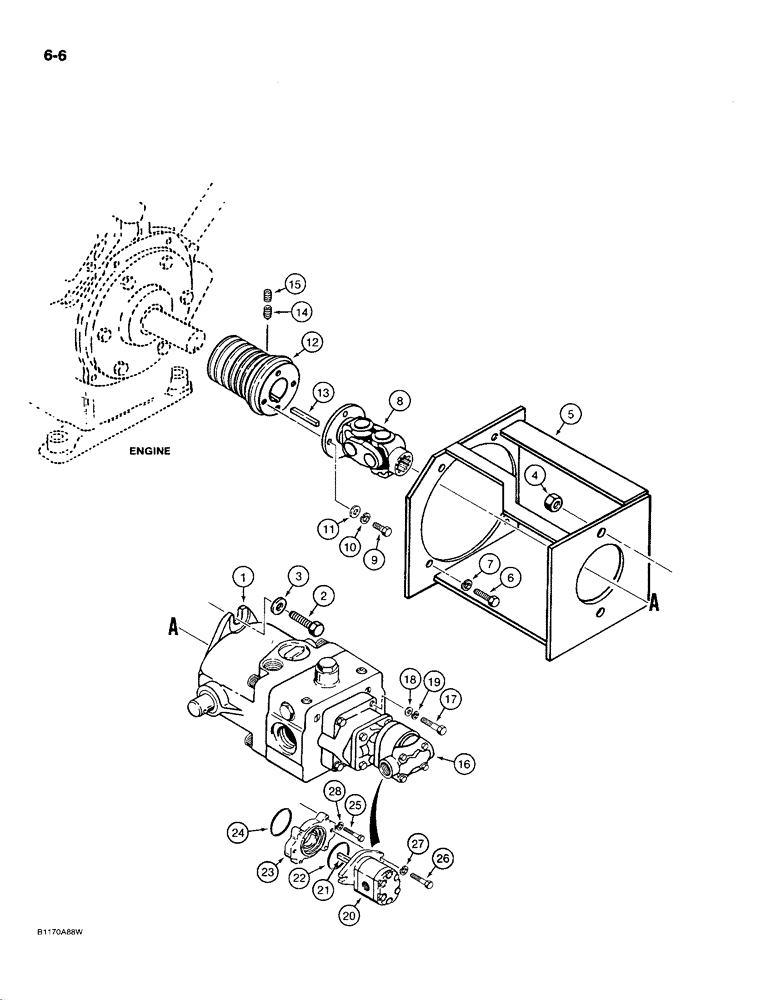

Запчасти Case MAXI-SNEAKER C (6-06) - GROUND DRIVE PUMP MOUNTING (06) - POWER TRAIN

1

H596304

PUMP

ASSEMBLY - ground drive, parts list Figures 6-8 and 6-10

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

3

195-515

WASHER,#12

- flat, No. 12, special, plated

2шт.

4

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.

5

H651620

BRACKET

- pump mounting

1шт.

6

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

4шт.

7

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

8

H582007

JOINT TURNING

JOINT ASSEMBLY - universal, parts list Figure 6-18

1шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

11

195-552

WASHER - flat, 5/16", plated

4шт.

12

H250076

SHEAVE

- engine

1шт.

13

A40305

KEY

- square, 3/8" x 2-1/2" long

1шт.

14

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8" - 16 NC x 3/8", cone point

1шт.

15

178-853

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex headless, 3/8" - 16 NC x 3/8", special

1шт.

16

H642215

PUMP

ASSEMBLY - dual, steering and equipment hydraulic, used on models prior to P.I.N., no longer available, order H672159 kit for service, Serial Range: -1232059

1шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

18

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8", hardened, plated

4шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

H672150

PUMP

ASSEMBLY - dual, steering and equipment hydraulic, includes adapter, used on models with P.I.N. and after, no longer available, order H672403 pump and H672404 adapter for service, Includes: Ref. 20-24, Start Serial: 1232059

1шт.

20

H672403

PUMP, HYDRAULIC

PUMP ASSEMBLY - dual, steering and equipment hydraulic, individual components are not serviced separately, Includes: Ref. 21-24

1шт.

Part of steering pump kit P/N H672159

1шт.

H672404

PACKAGE

ADAPTER ASSEMBLY - pump

1шт.

Part of steering pump kit P/N H672159

1шт.

21

N9733

ADAPTER

EXTENSION - tang

1шт.

22

N9735

O-RING,1.862" ID x 0.103" Width

- small

1шт.

23

N9732

ADAPTER

- pump

1шт.

24

N9734

O-RING,1.986" ID x 0.103" Width

- large

1шт.

25

165-153

HEX SOC SCREW,5/16" - 18 x 1"

BOLT - hex socket head, 5/16" - 18 NC x 1", plated

4шт.

Part of steering pump kit P/N H672159

1шт.

26

165-109

BOLT - hex socket head, 3/8" - 16 NC x 1", plated

2шт.

Part of steering pump kit P/N H672159

1шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Part of steering pump kit P/N H672159

1шт.

28

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

Part of steering pump kit P/N H672159

1шт.

H672159

PUMP

KIT - steering pump, Includes: Refs. 20, 25, 26, 27, 28 and P/N H672404

1шт.
