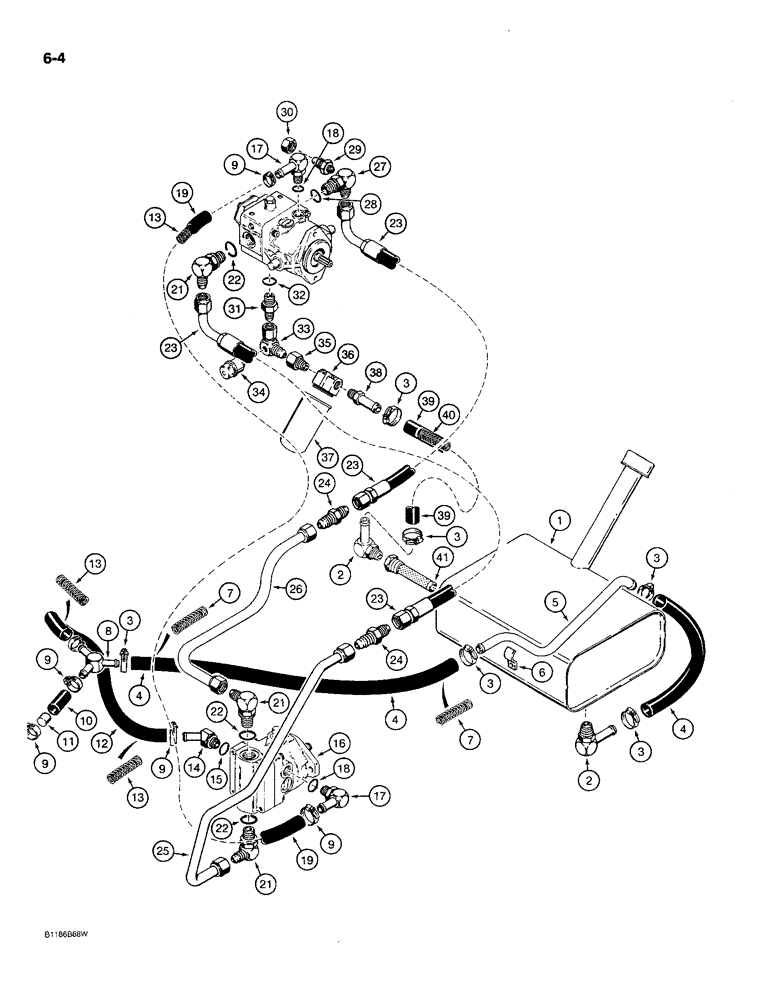

Запчасти Case MAXI-SNEAKER C (6-04) - GROUND DRIVE HYDRAULIC CIRCUIT, P.I.N. 1214519 AND AFTER (06) - POWER TRAIN

1

H651612

OIL RESERVOIR

RESERVOIR ASSEMBLY - hydraulic oil, parts list Figure 8-2

1шт.

2

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

FITTING - stem, 90 degree

2шт.

3

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

6шт.

4

H347849

HOSE

- 30" (763 mm) long, hydraulic reservoir to transmission and motor assembly

2шт.

5

H418830

TUBE ASSY.,25.5 mm OD

TUBE - hydraulic reservoir to transmission and motor assembly

1шт.

6

A12308

CLAMP

- at hydraulic reservoir

1шт.

7

H216994

VALVE SPRING

SPRING - hose

2шт.

8

H339747

FITTING

- special, hose

1шт.

9

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

6шт.

10

A9156

HOSE,0.75" ID x 4.50"

- at tee, cut from D55911 bulk hose, see below 0.75" ID x 4.50"

1шт.

11

H269449

PLUG

- hose

1шт.

12

H307777

HOSE ASSY.

HSOE - 3/4" (19 mm) ID x 20" (508 mm) long, cut from 180720C2 bulk hose, see below

1шт.

13

H309906

SPRING

- tube

3шт.

14

217-321

FITTING,45 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

- stem, 45 degree, adjustable, Includes: Ref. 15

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Stem fitting

1шт.

16

REF

INSTRUCTION

TRANSMISSION AND MOTOR ASSEMBLY - for correct assembly and components see Figure 6-77

1шт.

17

217-364

FITTING,90 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

- stem, 90 degree, adjustable, Includes: Ref. 18

2шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Stem fitting

1шт.

19

H338087

HOSE

- 3/4" (19 mm) ID x 66" (1676 mm) long, cut from 180720C2 bulk hose, see below

1шт.

20

H596304

PUMP

ASSEMBLY - ground drive, parts list Figures 6-8 and 6-10

1шт.

21

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 22-25

3шт.

22

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

23

H261578

HOSE

- 1016 mm long, transmission and motor assembly to ground drive pump

1шт.

24

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight

2шт.

25

H672183

TUBE ASSY.,19.05 mm OD

TUBE - transmission and motor assembly to ground drive pump

1шт.

26

H672182

TUBE ASSY.,19.05 mm OD

TUBE - hose, transmission and motor assembly to steering and equipment hydraulic pump

1шт.

180720C2

HOSE ASSY.

HOSE - bulk, 3/4" (19 mm) ID x 25 ft (762 cm) long

1шт.

D55911

HOSE

- bulk, 3/4" (19 mm,) ID x 28" (711 mm) long

1шт.

27

H364489

ELBOW

- 90 degree, special, at ground drive pump, Includes: Ref. 28

1шт.

28

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

29

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight

1шт.

30

218-755

CAP,37 Degree, 3/4"-16

1шт.

31

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, Incl. Ref. 32, 33

1шт.

32

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

33

H407684

FITTING

ELBOW - at filter

1шт.

34

H287466

GAUGE ASSY.

INDICATOR - vacuum, tee

1шт.

35

H407833

CONNECTOR, ELEC

CONNECTOR - at filter

1шт.

36

H616508

FILTER HEAD

BASE - filter, hydraulic

1шт.

37

H311647

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

38

217-375

FITTING,1" Hose Barb x 3/4" Male NPTF

- stem, straight

1шт.

39

H123729

HYDRAULIC HOSE,14.50"

- Filter to hydraulic reservoir, Cut from H307926 bulk hose, See below 14.50"

1шт.

40

H33233

VALVE SPRING

SPRING - hose

1шт.

41

H151399

FILTER STRAINER

SCREEN - suction filter

1шт.

H307926

HOSE ASSY.

HOSE - bulk, 1" (25 mm) ID x 62" (1575 mm) long

1шт.
