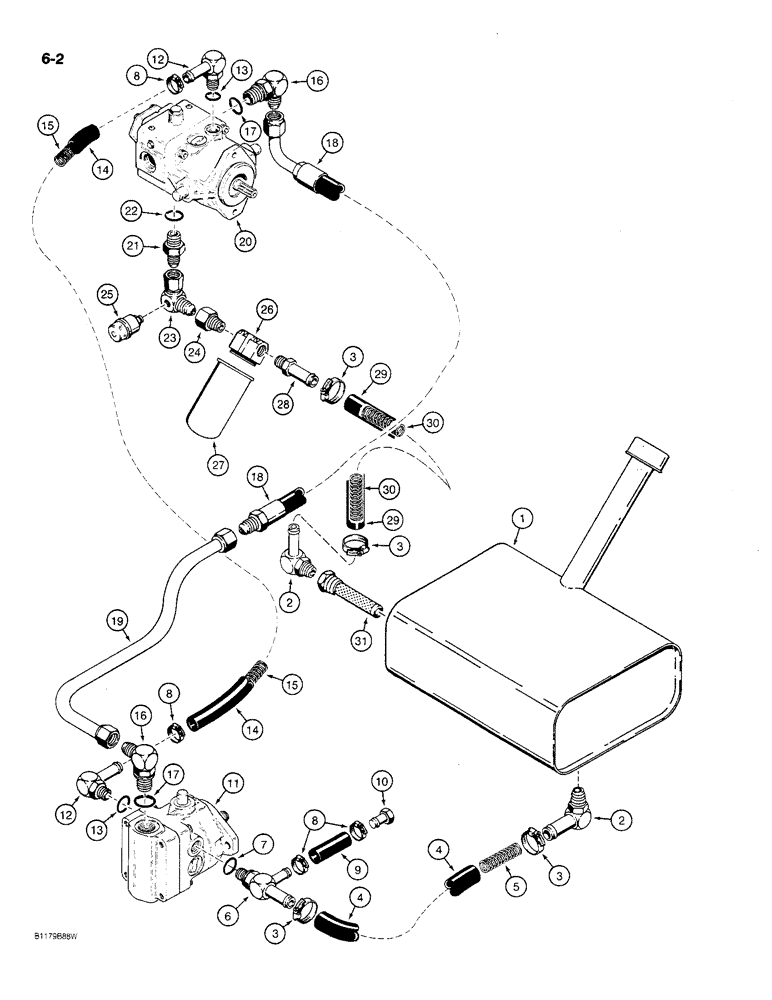

Запчасти Case MAXI-SNEAKER C (6-02) - GROUND DRIVE HYDRAULIC CIRCUIT, USED ON MODELS PRIOR TO P.I.N. 1214519 (06) - POWER TRAIN

1

H651612

OIL RESERVOIR

RESERVOIR ASSEMBLY - hydraulic oil, parts list Figure 8-2

1шт.

2

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

FITTING - stem, 90 degree

2шт.

3

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

4шт.

4

H307926

HOSE ASSY.

HOSE - 1575 mm long, hydraulic reservoir to transmission and motor assembly

1шт.

5

H216994

VALVE SPRING

SPRING - hose, hydraulic reservoir to transmission and motor assembly

1шт.

6

H401968

TEE

- at transmission and motor assembly, Includes: Ref. 7

1шт.

8

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

4шт.

9

H188995

HYDRAULIC HOSE,19.05 mm ID x 114.30 mm

At Tee, Cut From Bulk, See Below 19.05 mm ID x 114.30 mm

1шт.

10

H269449

PLUG

- hose

1шт.

11

REF

INSTRUCTION

TRANSMISSION AND MOTOR ASSEMBLY - for correct assemblies and components, see Figure 6-28

1шт.

12

217-364

FITTING,90 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

- stem, 90 degree, adjustable, Includes: Ref. 13

2шт.

14

H338087

HOSE

- 3/4" (19 mm) ID x 66" (1676 mm) long, cut from 180720C2 bulk hose, see below

1шт.

15

H309906

SPRING

- hose, transmission and motor assembly to ground drive pump

3шт.

16

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 17

1шт.

17

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

18

H277376

HOSE ASSY.

HOSE - 1397 mm long, transmission and motor assembly to ground drive pump

1шт.

19

H654582

TUBE,19.05 mm OD

- at transmission and motor assembly

1шт.

20

H596304

PUMP

ASSEMBLY - ground drive, parts list Figures 6-8 and 6-10

1шт.

21

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, Incl. Ref. 22

1шт.

22

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

23

H407684

FITTING

ELBOW - at filter

1шт.

24

H407833

CONNECTOR, ELEC

CONNECTOR - at filter

1шт.

25

H287466

GAUGE ASSY.

INDICATOR - vacuum, tee

1шт.

26

H616508

FILTER HEAD

BASE - filter, hydraulic

1шт.

27

H311647

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

28

217-375

FITTING,1" Hose Barb x 3/4" Male NPTF

- stem, straight

1шт.

29

H123729

HYDRAULIC HOSE,14.50"

- Filter to hydraulic reservoir 14.50"

1шт.

30

H33233

VALVE SPRING

SPRING - hose, filter to hydraulic reservoir

1шт.

31

H151399

FILTER STRAINER

SCREEN - suction filter

1шт.

180720C2

HOSE ASSY.

HOSE - bulk, 3/4" (19 mm) x 25 ft (762 cm) long

1шт.

D55911

HOSE

- bulk, 3/4" (19 mm) ID x 28" (711 mm) long

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, tee

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, fitting

1шт.
