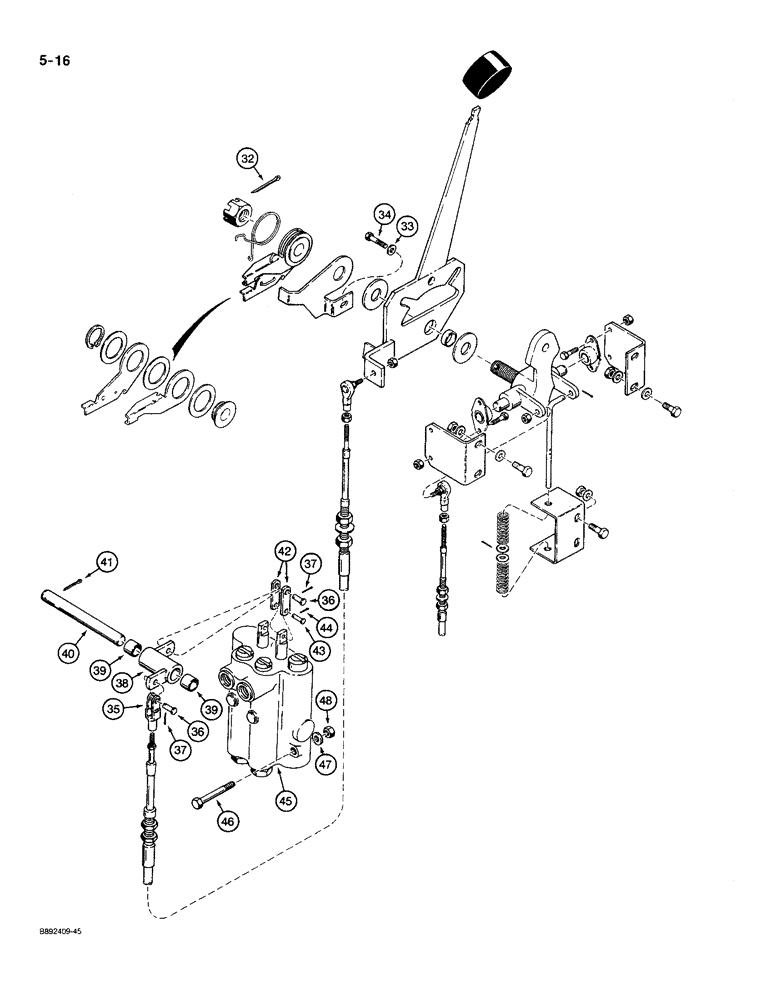

Запчасти Case MAXI-SNEAKER C (5-16) - DIRECTIONAL CONTROLS, STEERING, FORWARD AND REVERSE, USED ON MODELS WITH P.I.N. JAF0021856 AND AFTER (05) - STEERING

32

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

1шт.

33

H426775

WASHER

- flat, 5/16" bolt size, hardened, plated

1шт.

34

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

35

H165688

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - special, 1/4"

1шт.

36

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

PIN - clevis, 1/4" x 51/64", special

2шт.

37

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

H649384

ROD

BELLCRANK ASSEMBLY - control cable to control valve, Includes: Ref. 38, 39

1шт.

38

NSS

NOT SOLD SEPARAT

BELLCRANK - shaft

1шт.

39

H151894

BUSHING

- bellcrank

2шт.

40

H390872

PIN

SHAFT - pivot

1шт.

41

132-316

COTTER PIN,3/32" x 1 1/4"

PIN, SPLIT (COTTER), 3/32" x 1 1/4"

1шт.

42

H185066

DRAG LINK

LINK - control valve

2шт.

43

H35279

AXLE PIN,4.72mm OD x 23.76mm L

PIN - clevis, 3/16" x 57/64"

1шт.

44

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

45

H656454

VALVE

ASSEMBLY - control, steering and attachment lift, parts list Figure 5-6

1шт.

46

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

2шт.

47

195-102

WASHER,1/4"

- flat, 1/4"

2шт.

48

131-1102

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4" - 20 NC

2шт.
