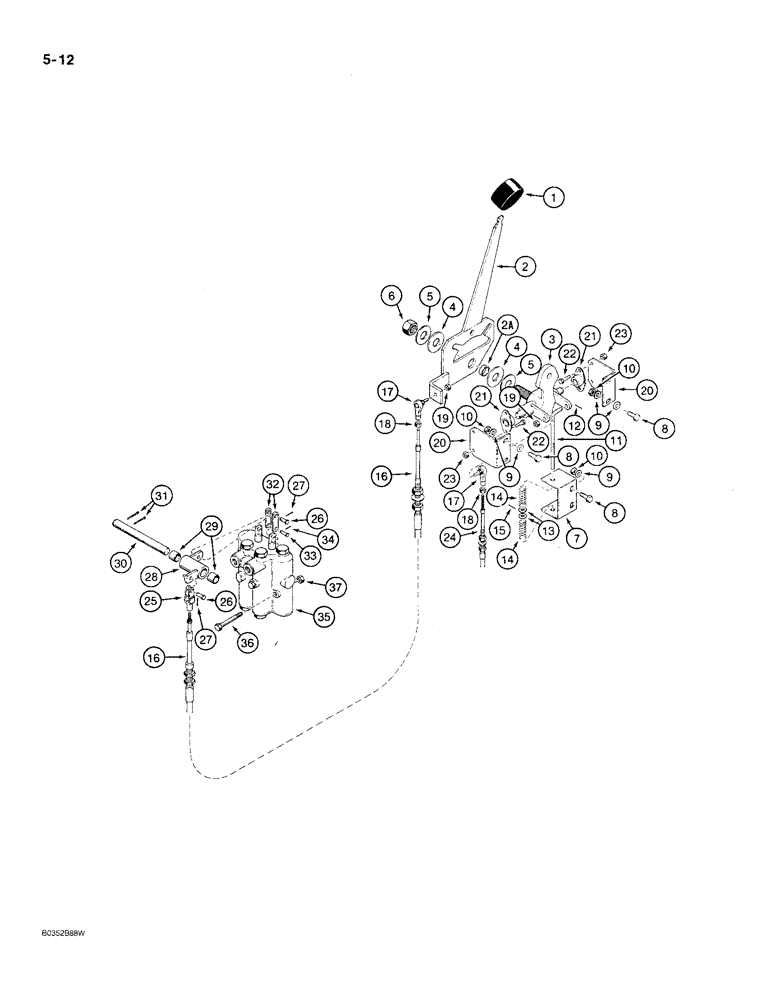

Запчасти Case MAXI-SNEAKER C (5-12) - DIRECTIONAL CONTROLS, STEERING, FWD. & REV., USED ON MDLS. W/ P.I.N. 1242166 THRU P.I.N. JAF0021855 (05) - STEERING

1

A177435

BALL KNOB

KNOB - directional control handle

1шт.

2

H672525

HANDLE

- directional control, Includes: Ref. 2A

1шт.

2a

H433184

BEARING

BUSHING - directional control handle

1шт.

3

H433501

PIVOT

BELLCRANK - drive control

1шт.

4

H433170

WASHER

- flat, nylon, special

2шт.

5

195-545

WASHER,3/4", SAE

- flat, 3/4", plated

2шт.

6

129-148

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4" - 10 NC, plated

1шт.

7

H433356

CHANNEL

BRACKET - steering spring retention

1шт.

8

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

9

H426775

WASHER

- flat, 5/16" bolt size, hardened, plated

10шт.

10

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

6шт.

11

H433355

ROD

- centering

1шт.

12

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

1шт.

13

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

14

H196717

VALVE SPRING

SPRING - steering control

2шт.

15

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

16

H556290

CONTROL

CABLE - steering

1шт.

17

H358374

PIVOT,1/4" - 28 x 1-1/3"

JOINT - ball, 1/4" - 28 NF

2шт.

18

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

19

131-1168

LOCK NUT,1/4"-28, GA

NUT, LOCK, 1/4"-28, GA

2шт.

20

H429845

ANGLE

BRACKET - bellcrank mounting

2шт.

21

H755785

FLANGED BEARING,15.88mm ID

BEARING - flange

2шт.

22

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

23

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

4шт.

24

H644401

CABLE

- ground drive, for connection at ground drive pump, see Figure 6-16

1шт.

25

H165688

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - special, 1/4"

1шт.

26

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

PIN - clevis, 1/4" x 51/64", special

2шт.

27

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

H649384

ROD

BELLCRANK ASSEMBLY - control cable to control valve, Includes: Ref. 28, 29

1шт.

28

NSS

NOT SOLD SEPARAT

BELLCRANK - shaft

1шт.

29

H151894

BUSHING

- bellcrank

2шт.

30

H390872

PIN

SHAFT - pivot

1шт.

31

132-316

COTTER PIN,3/32" x 1 1/4"

PIN, SPLIT (COTTER), 3/32" x 1 1/4"

2шт.

32

H185066

DRAG LINK

LINK - control valve

2шт.

33

H35279

AXLE PIN,4.72mm OD x 23.76mm L

PIN - clevis, 3/16" x 57/64"

1шт.

34

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

35

H550079

LOCK VALVE

VALVE ASSEMBLY - control, steering and attachment lift, parts list Figure 5-4

1шт.

36

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

37

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.
