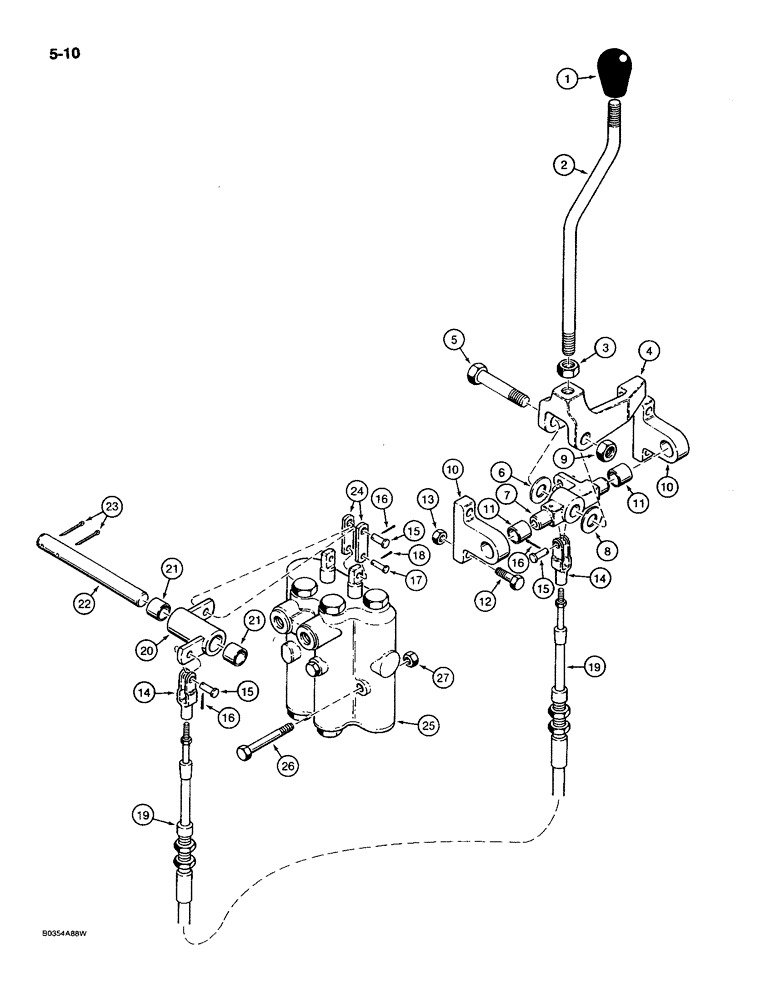

Запчасти Case MAXI-SNEAKER C (5-10) - DIRECTIONAL CONTROLS, STEERING, FORWARD AND REVERSE, USED ON MODELS PRIOR TO P.I.N. 1242166 (05) - STEERING

1

H182113

KNOB

- control lever

1шт.

2

H293084

HANDLE

LEVER - directional control

1шт.

3

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

4

H181982

CASTING

BASE - directional control

1шт.

5

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2", plated

1шт.

6

H182097

WASHER

- special, friction, .125" (3.04 mm) thick

1шт.

7

H181974

SHAFT

BELLCRANK - directional control

1шт.

8

H256305

WASHER

- flat, 1/16" (1.6 mm) thick, special

1шт.

9

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

1шт.

H558411

BEARING

BRACKET ASSEMBLY - bellcrank, Includes: Ref. 10, 11

2шт.

10

NSS

NOT SOLD SEPARAT

BRACKET - bellcrank

1шт.

11

H151894

BUSHING

- bracket

1шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

13

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

14

H165688

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - special, 1/4"

2шт.

15

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

PIN - clevis, 1/4" x 51/64", special

3шт.

16

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

3шт.

17

H35279

AXLE PIN,4.72mm OD x 23.76mm L

PIN - clevis, 3/16" x 57/64" long, special

1шт.

18

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

19

H556290

CONTROL

CABLE - forward and reverse, 80" (2032 mm) long

1шт.

H649384

ROD

BELLCRANK ASSEMBLY - control cable to control valve, Includes: Ref. 20. 21

1шт.

20

NSS

NOT SOLD SEPARAT

BELLCRANK - shaft

1шт.

21

H151894

BUSHING

- bellcrank

2шт.

22

H390872

PIN

SHAFT - pivot

1шт.

23

132-316

COTTER PIN,3/32" x 1 1/4"

PIN, SPLIT (COTTER), 3/32" x 1 1/4"

2шт.

24

H185066

DRAG LINK

LINK - control valve

2шт.

25

H550079

LOCK VALVE

VALVE ASSEMBLY - control, steering and attachment lift, parts list

1шт.

Figure 5-4

1шт.

26

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

27

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.
