Запчасти Case MAXI-SNEAKER C (5-06) - STEERING AND ATTACHMENT LIFT CONTROL VALVE, USED ON MODELS WITH P.I.N. JAF0021856 AND AFTER (05) - STEERING

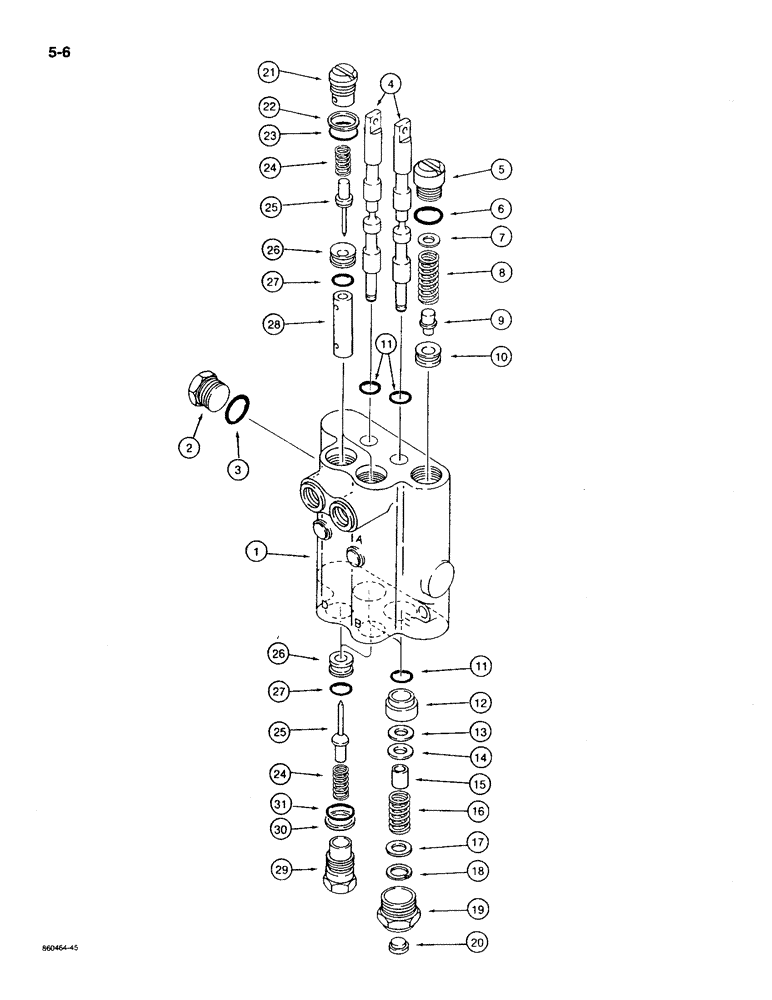

Схема запчастей Case MAXI-SNEAKER C - (5-06) - STEERING AND ATTACHMENT LIFT CONTROL VALVE, USED ON MODELS WITH P.I.N. JAF0021856 AND AFTER (05) - STEERING

Артикул

Название

Примечание

Количество

H656454

VALVE

ASSEMBLY - control, steering and attachment lift, for mounting hardware see Figure 5-16, Includes: Ref. 1-31

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

N9862

PLUG

ASSEMBLY - special, valve body, not used on models with power beyond for backfill blade circuit, Includes: Ref. 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - special, valve body

1шт.

3

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- plug

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - steering control valve

2шт.

F37892

PLUG

ASSEMBLY - relief valve, Includes: Ref. 5,6

1шт.

5

NSS

NOT SOLD SEPARAT

PLUG - relief valve

1шт.

6

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- plug

1шт.

7

F12267

WASHER

SHIM - relief valve, .010" (0.3 mm) thick

1шт.

7

H746149

SHIM,.015" Thk

Relief valve (0.4 mm) .015" Thk

1шт.

7

H220798

SHIM,.035" Thk

- relief valve, .035" (0.9 mm) thick

1шт.

8

L33609

SPRING

- relief valve (color coded purple)

1шт.

9

F37837

VALVE POPPET

POPPET - relief valve

1шт.

10

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

11

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- spool

4шт.

12

F36304

BUSHING

- valve body

2шт.

13

H253054

WASHER

- special, upper, .020" (0.5 mm) thick, if used

2шт.

14

H253062

WASHER

- special, middle, .046" (1.2 mm) thick

2шт.

15

F36239

SPACER

- spool

2шт.

16

F36306

SPRING

- spool centering

2шт.

17

F36908

WASHER

- special, lower, .065" ( 1.7 mm) thick

2шт.

18

H758367

RING

- retaining, washer

2шт.

19

H375667

CAP

- valve body

2шт.

20

205-14

HOLE PLUG BUTTON,3/8"

INSERT - button

2шт.

H636977

PLUG

ASSEMBLY - seat retaining, Includes: Ref. 21-23

2шт.

21

NSS

NOT SOLD SEPARAT

PLUG - seat retaining

1шт.

22

G32626

RING

- backup, plug O-ring

1шт.

23

H755975

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- plug

1шт.

24

H364182

SPRING

- poppet

4шт.

25

F77048

VALVE POPPET

POPPET - valve

4шт.

H636951

SEAT

ASSEMBLY - poppet, Includes: Ref. 26, 27

4шт.

26

NSS

NOT SOLD SEPARAT

SEAT - poppet

1шт.

27

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- seat

1шт.

28

F8229

PLUNGER

- valve

2шт.

H636969

FITTING

PLUG ASSEMBLY - lower port, Includes: Ref. 29-31

2шт.

29

NSS

NOT SOLD SEPARAT

PLUG - lower port

1шт.

30

G32626

RING

- backup, plug O-ring

1шт.

31

H755975

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- plug

1шт.

Выбрано товаров: 39
