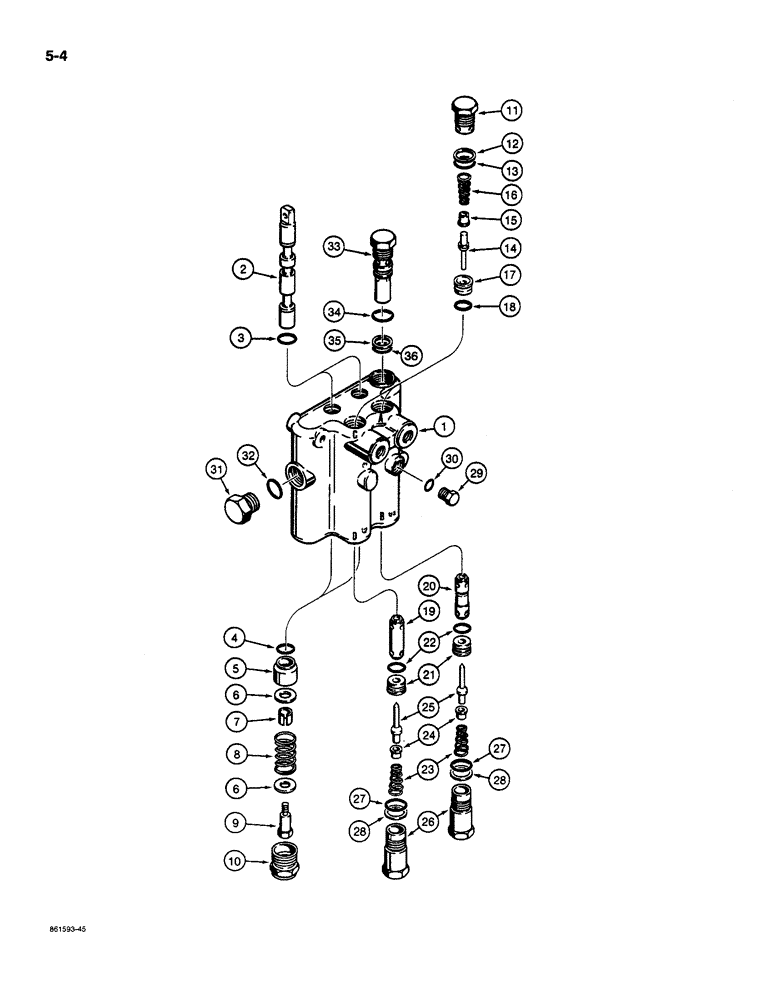

Запчасти Case MAXI-SNEAKER C (5-04) - STEERING AND ATTACHMENT LIFT CONTROL VALVE, USED ON MODELS PRIOR TO P.I.N. JAF0021856 (05) - STEERING

H550079

LOCK VALVE

VALVE ASSEMBLY - control, steering and attachment lift, for mounting hardware see Figures 5-10 and 5-12, Includes: Ref. 1-36

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

3

F37887

O-RING

- spool, plug end

2шт.

Part of seal kit P/N H172643

1шт.

4

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- spool, control end

2шт.

Part of seal kit P/N H172643

1шт.

5

T39069

BUSHING

- spool

2шт.

6

F8235

WASHER

- special, .062" (1.575 mm) thick, spring retaining

4шт.

7

F37885

SPACER

- spring

2шт.

8

F14091

VALVE SPRING

SPRING - centering, spool

2шт.

9

F37886

SCREW

- spring retaining

2шт.

10

F35196

CAP

- spool end

2шт.

F35197

PLUG

ASSEMBLY - seat retaining, Includes: Ref. 11-13

2шт.

11

NSS

NOT SOLD SEPARAT

PLUG - seat retaining

1шт.

12

A35698

BACK-UP RING

RING - backup

1шт.

Part of seal kit P/N H172643

1шт.

13

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- plug

1шт.

Part of seal kit P/N H172643

1шт.

14

F88777

PLUNGER

POPPET - control valve

2шт.

Part of seal kit P/N H172643

1шт.

15

H266684

AXLE PIN

GUIDE - poppet

2шт.

16

F35198

VALVE SPRING

SPRING - poppet

2шт.

F37884

SEAT

ASSEMBLY - poppet, Includes: Ref. 17, 18

2шт.

17

NSS

NOT SOLD SEPARAT

SEAT - poppet

1шт.

18

A64436

O-RING,0.549" ID x 0.755" OD

- seat

1шт.

Part of seal kit P/N H172643

1шт.

19

F8229

PLUNGER

- "C" - "D" section only

1шт.

20

H142133

PLUNGER

- "A" - "B" section only

1шт.

F37884

SEAT

ASSEMBLY - poppet, Includes: Ref. 21, 22

2шт.

21

NSS

NOT SOLD SEPARAT

SEAT - poppet

1шт.

22

A64436

O-RING,0.549" ID x 0.755" OD

- seat

1шт.

Part of seal kit P/N H172643

1шт.

23

F35198

VALVE SPRING

SPRING - poppet

2шт.

24

H266684

AXLE PIN

GUIDE - poppet

2шт.

25

F88777

PLUNGER

POPPET - control valve

2шт.

Part of seal kit P/N H172643

1шт.

H172601

PLUG

ASSEMBLY - port, Includes: Ref. 26-28

2шт.

26

NSS

NOT SOLD SEPARAT

PLUG - port

1шт.

27

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- plug

1шт.

Part of seal kit P/N H172643

1шт.

28

A35698

BACK-UP RING

RING - backup

1шт.

Part of seal kit P/N H172643

1шт.

29

H142141

PLUG

- "A" - "B" section

1шт.

30

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- plug

1шт.

Part of seal kit P/N H172643

1шт.

H94219

PLUG

ASSEMBLY - housing, Includes: Ref. 31, 32

1шт.

31

NSS

NOT SOLD SEPARAT

PLUG - housing

1шт.

32

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- plug

1шт.

N8813

LOCK VALVE

VALVE ASSEMBLY - relief, control valve, Includes: Ref. 33-36

1шт.

33

NSS

NOT SOLD SEPARAT

VALVE - relief, control valve

1шт.

34

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- outer, large

1шт.

Part of seal kit P/N H172643

1шт.

35

G32626

RING

- backup, inner O-ring

1шт.

Part of seal kit P/N H172643

1шт.

36

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- inner, small

1шт.

Part of seal kit P/N H172643

1шт.

H172643

SEAL ASSY.

KIT - seal, Includes: Refs. 3, 4, 12, 13, 14, 18, 22, 25, 27, 28, 30, 34, 35 and 36

1шт.
