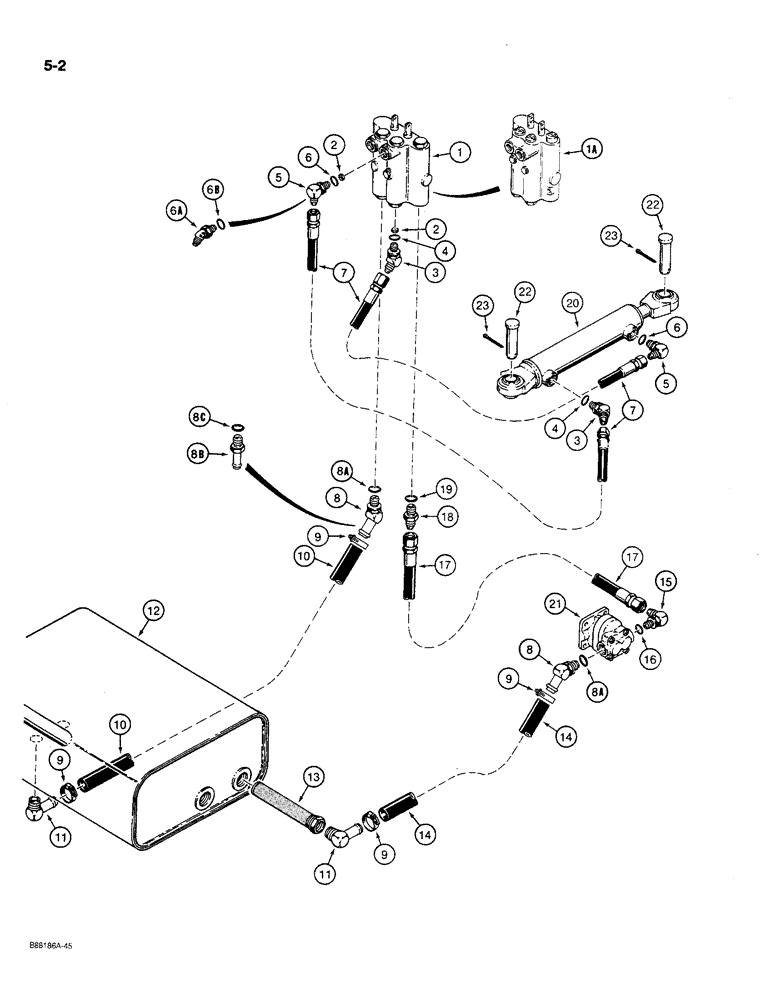

Запчасти Case MAXI-SNEAKER C (5-02) - STEERING HYDRAULIC CIRCUIT (05) - STEERING

1

H550079

LOCK VALVE

VALVE ASSEMBLY - control, steering and attachment lift, used on models prior to P.I.N., parts list Figure 5-4, Serial Range: -JAF0021856

1шт.

1a

H656454

VALVE

ASSEMBLY - control, steering and attachment lift, used on models with P.I.N. and after, parts list Figure 5-6, Start Serial: JAF0021856

1-2шт.

2

H746875

SCREW

ORIFICE - control valve

2шт.

3

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, adjustable, Includes: Ref. 4

2шт.

4

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

5

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, at control valve upper port used on models prior to P.I.N., Includes: Ref. 6, Serial Range: -JAF0021856

1-2шт.

6

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

6a

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 deg, adj., 9/16 - 18 inch flare x O-ring boss, used at control valve upper port on models with P.I.N. and after, Includes: Ref. 6B

1шт.

7

H172965

HYDRAULIC HOSE,6.35 mm ID x 939.60 mm, SAE 100R1

Control Valve to Steering Cylinder 6.35 mm ID x 939.60 mm, SAE 100R1

2шт.

8

217-321

FITTING,45 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

- stem, 45 degree, adjustable, used at control valve supply port of models prior to P.I.N., Includes: Ref. 8A, Serial Range: -JAF0021856

1-2шт.

8b

217-396

FITTING,3/4" Hose Barb x 3/4" - 16 Male ORB

ADAPTER - straight, 3/4-16 x 3/4 inch hose ID, used at control valve supply port on models with P.I.N. and after, Includes: Ref. 8C, Start Serial: JAF0021856

1шт.

8c

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

4шт.

10

H307769

HOSE ASSY.

HOSE - 3/4" (19 mm) ID x 42" (1067 mm) long, control valve to hydraulic reservoir, cut from 180720C2 bulk hose, see below

1шт.

11

217-330

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1" Male NPTF

- stem, 90 degree

2шт.

12

H651612

OIL RESERVOIR

RESERVOIR ASSEMBLY - hydraulic oil, parts list Figure 8-2

1шт.

13

H151399

FILTER STRAINER

SCREEN - suction filter, at hydraulic reservoir

1шт.

14

H316331

HOSE

- 3/4" (19 mm) ID x 33" (838 mm) long, hydraulic reservoir to steering pump, cut from 180720C2 bulk hose, see below

1шт.

15

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, adjustable, Includes: Ref. 16

1шт.

16

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

17

D58825

HOSE

- 32" (813 mm) long, steering pump to control valve

1шт.

18

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Male, Incl. Ref 19 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

20

H621367

CYLINDER BLOCK

CYLINDER ASSEMBLY - 2-3/8" (60 mm) ID x 8" (203 mm) stroke, steering, parts list Figure 5-8

1шт.

21

REF

INSTRUCTION

PUMP ASSEMBLY - dual, steering and equipment hydraulic, parts list Figure 6-6

1шт.

22

H67272

PIN,25.3mm OD x 84.93mm L

PIN - clevis, steering cylinder mounting

2шт.

23

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

2шт.

180720C2

HOSE ASSY.

HOSE - bulk, 3/4" (19 mm) ID x 25 ft (762 cm) long

1шт.

8a

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, fitting

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, connector

1шт.

6b

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
