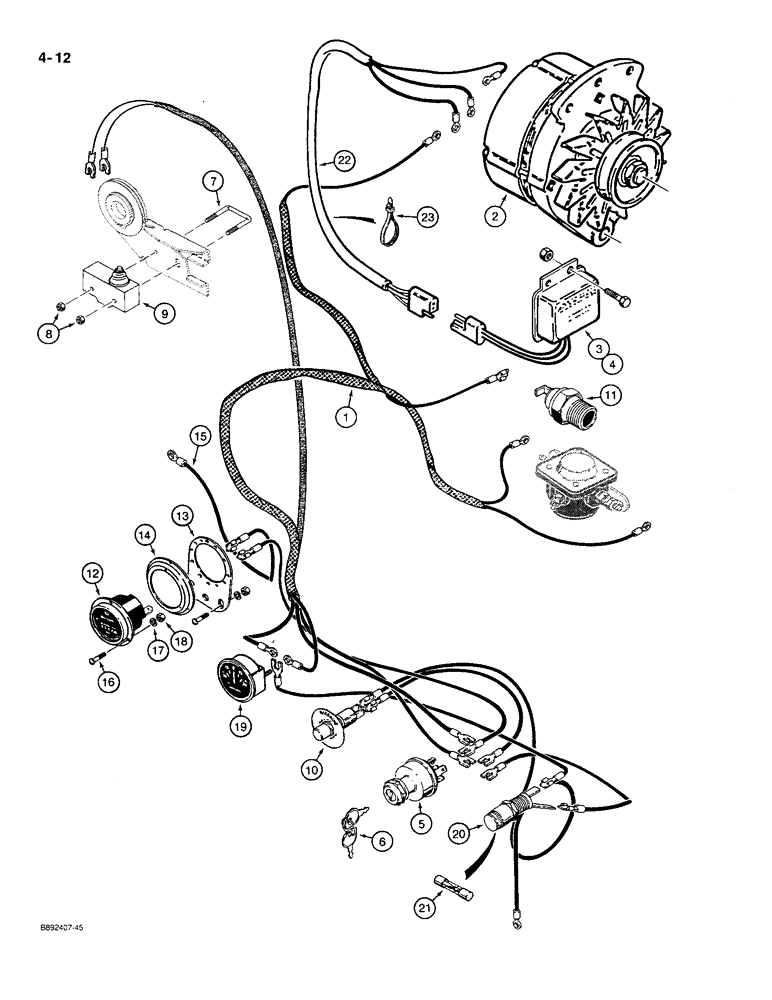

Запчасти Case MAXI-SNEAKER C (4-12) - MAIN WIRING HARNESS AND CONNECTIONS, USED ON MODELS WITH P.I.N. JAF0021856 AND AFTER (04) - ELECTRICAL SYSTEMS

1

H673691

HARNESS

- main wiring

1шт.

2

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - for correct assembly and components, see Figures 4-4 and 4-6

1шт.

3

H107516

GOVERNOR

REGULATOR - alternator, no longer available, order H433180 alternator and ref. 4 regulator

1шт.

4

H433181

REGULATOR

- alternator

1шт.

5

H71498

SWITCH

- ignition, Includes: Ref. 6

1шт.

6

A24509

KEY

- ignition start, Set of 2

1шт.

7

H435814

U-BOLT

BOLT - U, neutral start switch mounting

1шт.

8

193-1003

NUT,Keps, w/LW,#6-32

- No. 6 NC, includes lock washer

2шт.

9

H435820

SWITCH

- neutral start

1шт.

10

H603852

LIGHT

LAMP - warning, hydraulic oil temperature

1шт.

H603852: RED REPLACEMENT LENS IS 114323A1

1шт.

11

H81935

SENDER UNIT

SENDER - hydraulic oil temperature

1шт.

12

H129957

HOURMETER

- engine

1шт.

13

H71480

SUPPORT

BRACKET - mounting, hourmeter

1шт.

14

D35079

DAMPER

- vibration, hourmeter

1шт.

15

H552802

WIRE - hourmeter, if used

1шт.

16

175-403

SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

- machine, truss head slotted, 1/4" - 20 NF x 3/4", plated

2шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

18

129-577

NUT,1/4"-20, G5

- hex, 1/4" - 20 NC, plated

2шт.

19

B53888

AMMETER

- electrical flow

1шт.

20

H340505

NOZZLE HOLDER

RETAINER - fuse holder

1шт.

21

223-31

FUSE,10 Amp, Type 3AG

- 30 amp, 3AG

1шт.

22

H107524

CABLE PULLING GRIP

HARNESS -, Serial Range: alternator-regulator

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

response from Wichita regarding the part illustrated just below reference 11...

1шт.

From looking at a print of the wiring harness and an old operator's manual, this is a relay used for the 'neutral start' circuit. One of the wires from the neutral start switch, ref. 9, runs to this relay (purple and black wire). An orange wire from the ammeter connects to the same terminal on the relay as the heavy wire from the positive post of the battery. The heavy wire on the opposite side of the relay goes to the starter.

1шт.

This is a part used by Wisconsin, the engine manufacturer, not Case. From the looks of it, a standard Ford starter relay with two large and two small terminals should suffice.

1шт.
