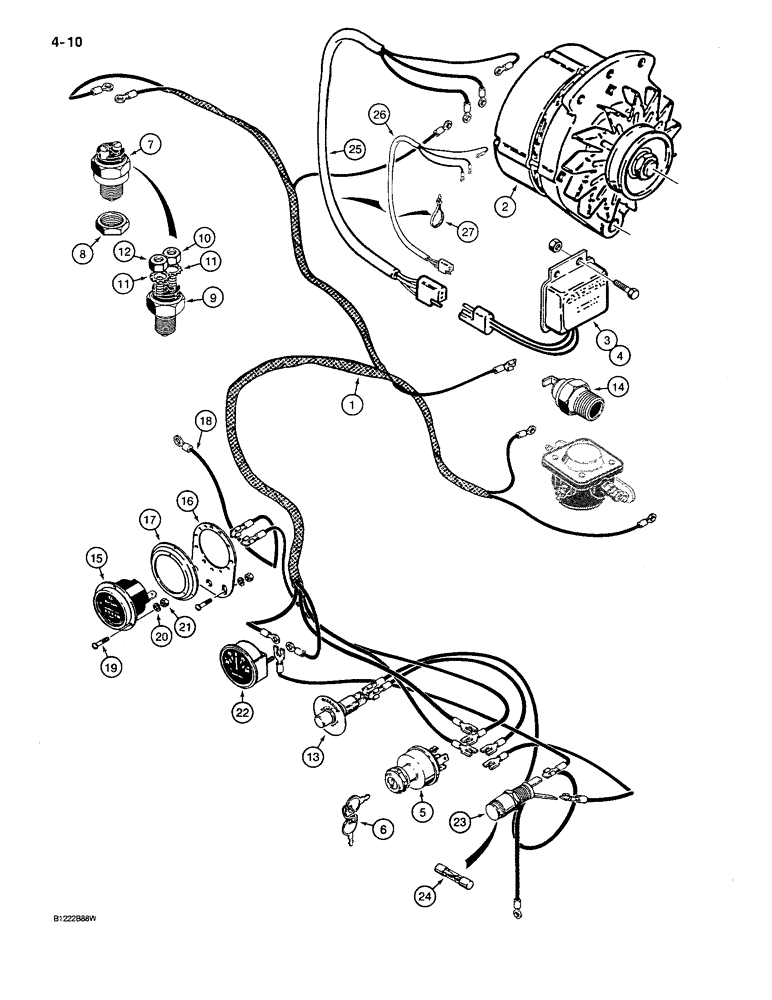

Запчасти Case MAXI-SNEAKER C (4-10) - MAIN WIRING HARNESS AND CONNECTIONS, USED ON MODELS PRIOR TO P.I.N. JAF0021856 (04) - ELECTRICAL SYSTEMS

1

H434308

HARNESS

- main wiring

1шт.

2

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - for correct assembly and components, see Figures 4-4 and 4-6

1шт.

3

H107516

GOVERNOR

REGULATOR - alternator, no longer available, order H433180 alternator and ref. 4 regulator

1шт.

4

H433181

REGULATOR

- alternator

1шт.

5

H71498

SWITCH

- ignition, Includes: Ref. 6

1шт.

6

A24509

KEY

- ignition start, Set of 2

1шт.

7

A55882

SOLENOID SWITCH

SWITCH - neutral start, used on models prior to P.I.N., Serial Range: -1242277

1шт.

8

131-404

LOCK NUT,PAL, 3/4"-16

NUT - hex, special locking, 3/4" - 16 NF, used with ref. 7 switch

1шт.

9

A160237

SWITCH

- neutral start, used on models with P.I.N. and after, Start Serial: 1242277

1шт.

10

H380386

NUT

- special, used with ref. 9 switch

2шт.

11

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, , Used with ref. 9 switch Ext, #8

1шт.

12

129-16

NUT,#8-32

Used with ref. 9 switch #8-32

2шт.

13

H603852

LIGHT

LAMP - warning, hydraulic oil temperature

1шт.

H603852: RED REPLACEMENT LENS IS 114323A1

1шт.

14

H81935

SENDER UNIT

SENDER - hydraulic oil temperature

1шт.

15

H129957

HOURMETER

- engine

1шт.

16

H71480

SUPPORT

BRACKET - mounting, hourmeter

1шт.

17

D35079

DAMPER

- vibration, hourmeter

1шт.

18

H552802

WIRE - hourmeter, if used

1шт.

19

175-403

SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

- machine, truss head slotted, 1/4" - 20 NF x 3/4", plated

2шт.

20

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

21

129-577

NUT,1/4"-20, G5

- hex, 1/4" - 20 NC, plated

2шт.

22

B53888

AMMETER

- electrical flow

1шт.

23

H340505

NOZZLE HOLDER

RETAINER - fuse holder

1шт.

24

223-31

FUSE,10 Amp, Type 3AG

- 30 amp, 3AG

1шт.

25

H398511

ELECTRICAL WIRE

HARNESS - alternator to regulator, no longer used, order ref. 26 harness for service

1шт.

26

H107524

CABLE PULLING GRIP

HARNESS -, Serial Range: alternator-regulator

1шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
