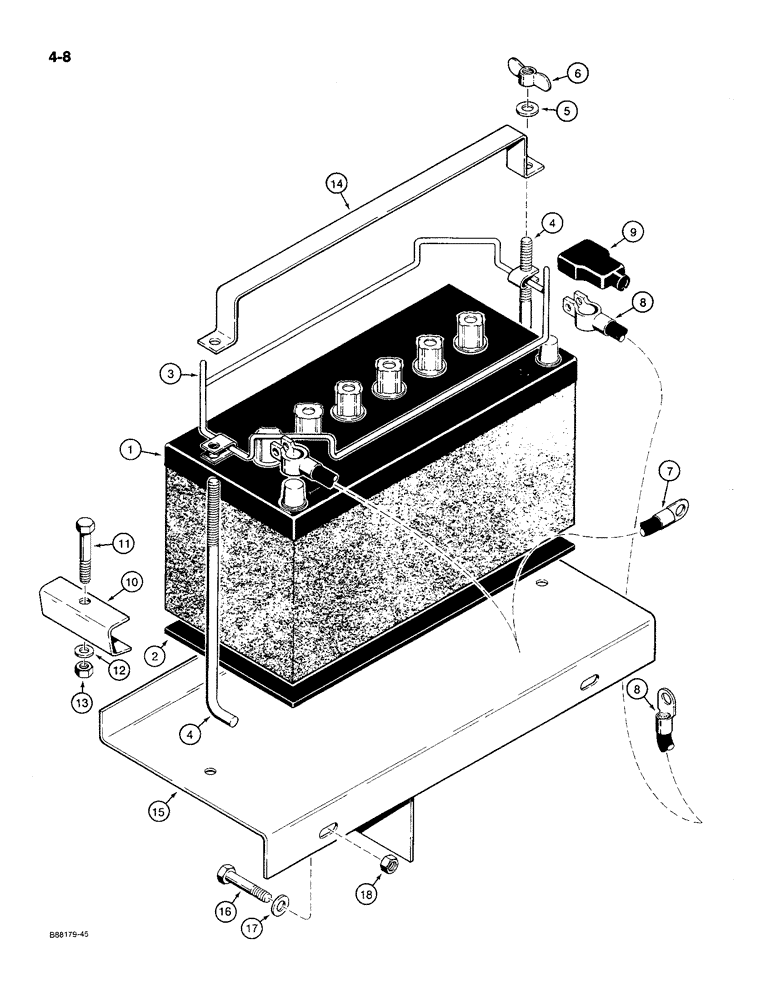

Запчасти Case MAXI-SNEAKER C (4-08) - BATTERY, MOUNTING, AND CABLES (04) - ELECTRICAL SYSTEMS

1

BPR29NF

BATTERY, DRY

BATTERY - tractor (replaces BPR29NFB)

1шт.

2

H378281

LARGE PLATE

PAD - rubber, battery

1шт.

3

H30833

FUNNEL

COVER - battery, may be one or two piece design, if used

1шт.

4

H283739

BOLT

BOLT - J-type, 5/16" - 18 NC x 8-3/4", battery hold down, if used

2шт.

5

195-521

WASHER,5/16", SAE

- flat, 5/16", plated, if used

2шт.

6

129-419

WING NUT,5/16"-18

NUT - wing, 5/16" - 18 NC, plated, if used

2шт.

7

H167726

CABLE PULLING GRIP

CABLE - battery, negative

1шт.

8

H173781

CABLE

- battery, positive

1шт.

9

H102681

COVER ASSY

COVER - battery terminal, postive battery cable

1шт.

10

H411397

CLAMP

CLIP - battery hold down, if used

2шт.

11

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

12

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

13

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

14

H396721

COVER

RETAINER - battery cap, if used

1шт.

15

H625020

BATTERY

BRACKET - battery mounting, used on models prior to P.I.N., Serial Range: -1242126

1шт.

15

H672264

BRACKET

- battery mounting, used on models with P.I.N. and after, Start Serial: 1242126

1шт.

16

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

17

H426775

WASHER

- flat, 5/16" bolt size, hardened, plated

2шт.

18

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.
