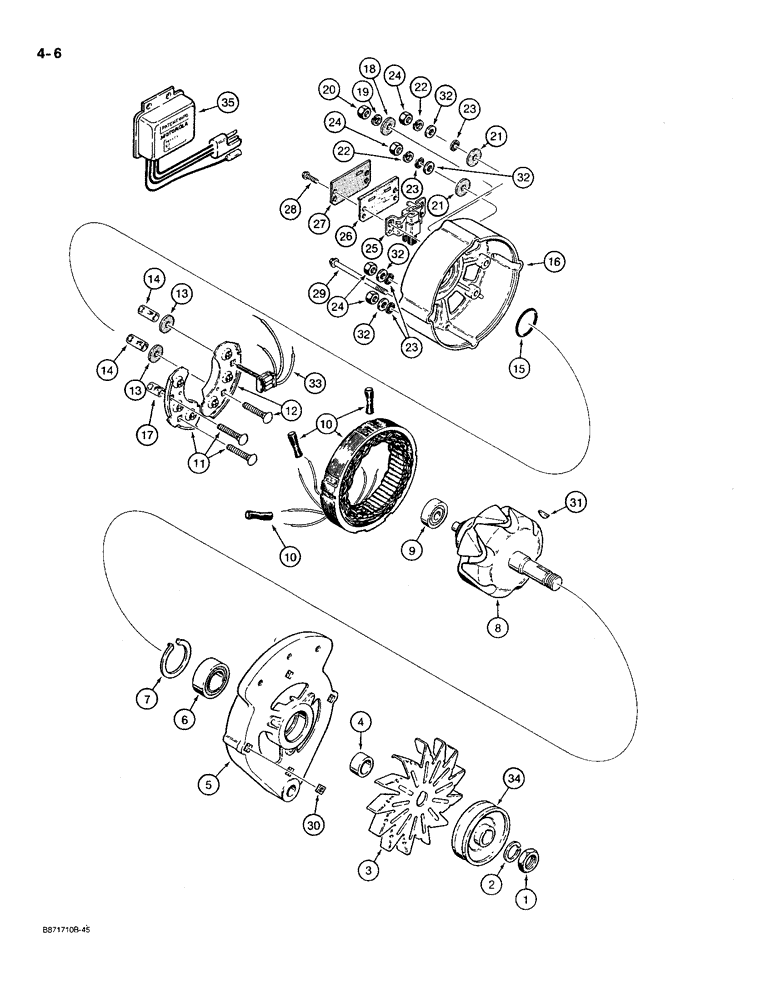

Запчасти Case MAXI-SNEAKER C (4-06) - ALTERNATOR ASSEMBLY (04) - ELECTRICAL SYSTEMS

H433180

ALTERNATOR

ASSEMBLY - 37 amperes, 12 volt, clockwise rotation, Motorola No. 8AL2106F, Includes: Ref. 1-33

1шт.

1

A44669

NUT

- hex, 5/8" - 18 NF, special, pulley

1шт.

2

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

3

A47602

FAN

- alternator

1шт.

4

A43405

SPACER

- fan

1шт.

5

A43397

HOUSING

- drive end

1шт.

6

A42810

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - rotor, drive end

1шт.

7

A43394

RETAINER

RING - retaining, drive end bearing

1шт.

8

A47604

ROTOR

- alternator

1шт.

9

A44427

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING - rectifier end

1шт.

10

N14084

STATOR

- alternator

1шт.

11

S117740

DIODE

- rectifier, negative

1шт.

12

A49691

DIODE

- rectifier, positive

1шт.

13

A47612

WASHER

- insulating, 3/16" ID

2шт.

14

A47608

SLEEVE

- insulating, 3/16" ID x 5/16" long

2шт.

15

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- bearing seal

1шт.

16

A49689

HOUSING

- rectifier end

1шт.

17

A44771

SLEEVE CYLINDER

SLEEVE - insulating, 1/4" ID x 1/2" long

1шт.

18

A47613

WASHER

- insulating, 1/4" ID

1шт.

19

192-40

LOCK WASHER,1/4"

black 1/4"

1шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

21

A48409

WASHER

- insulating, 13/64" ID

2шт.

22

A49692

WASHER

- lock, special

2шт.

23

A49693

WASHER

- special, sealing

4шт.

24

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

4шт.

25

A41048

BRUSH, COMMUTATOR

BRUSH ASSEMBLY - with holder

1шт.

26

A44769

GUARD

SHIELD - dust, brush holder

1шт.

27

A43399

COVER

- brush holder

1шт.

28

187-825

SCREW - pan head, self-tapping, No. 8 - 18 x 1/2", plated

2шт.

29

A44423

BOLT

- hex head, No. 10 - 24 NC x 2-55/64"

4шт.

30

NLS

NO LONGER SERVICED

- square, No. 10 - 24 NC

4шт.

31

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

32

195-513

WASHER,#10

- flat, No. 10, plated

4шт.

33

A49690

RECTIFIER

DIODE TRIO - alternator

1шт.

34

A44678

PULLEY

- alternator, does not come with alternator, order separately

1шт.

35

H433181

REGULATOR

- voltage

1шт.
