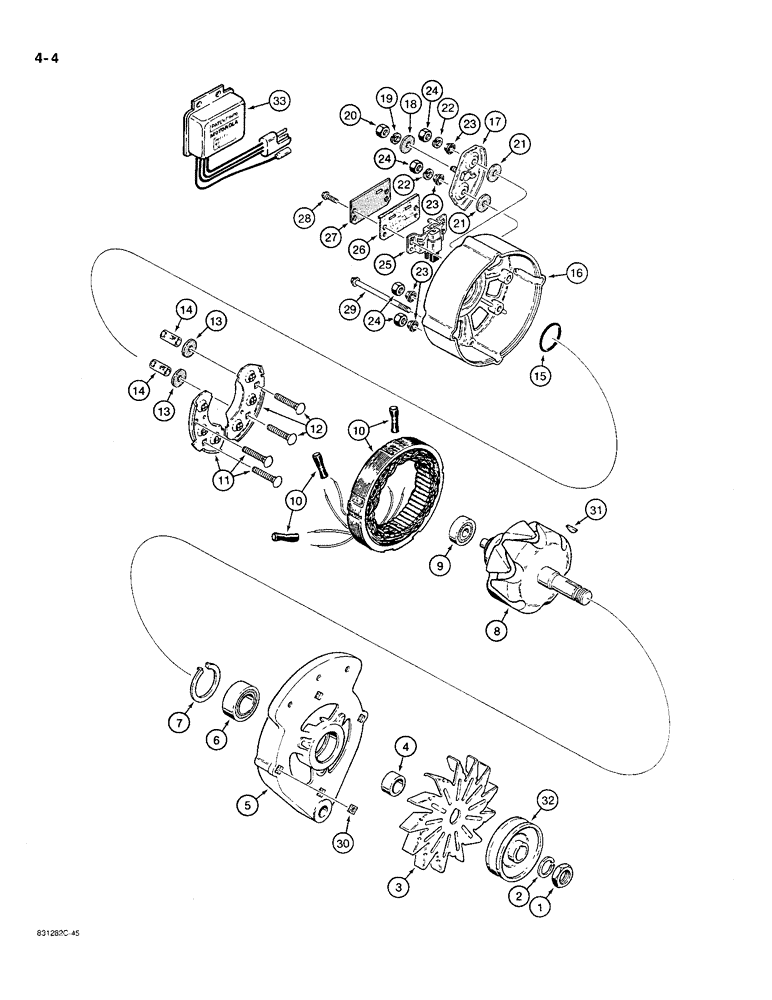

Запчасти Case MAXI-SNEAKER C (4-04) - ALTERNATOR ASSEMBLY (04) - ELECTRICAL SYSTEMS

H527259

ALTERNATOR

ASSEMBLY - 35 amperes, 12 volt, clockwise rotation, Motorola No. 70D44836B03, Model No. A12N451, assembly no longer available, order H433180 alternator (Figure 4-6) and H433181 regulator (Figures 4-10 or 4-12), Includes: Ref. 1-31

1шт.

1

A41035

NUT

- pulley, 5/8" - 18 NF

1шт.

2

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

3

A47602

FAN

- alternator

1шт.

4

A43405

SPACER

- fan

1шт.

5

A43397

HOUSING

- drive end

1шт.

6

A65781

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, drive end

1шт.

7

A43394

RETAINER

RING - retaining, drive end bearing

1шт.

8

A47604

ROTOR

- alternator

1шт.

9

A44427

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING - rectifier end

1шт.

10

A48411

STATOR

- alternator

1шт.

11

S117740

DIODE

- rectifier, negative

1шт.

12

S117741

DIODE

- rectifier, positive

1шт.

13

A47612

WASHER

- insulating, No. 10 ID

2шт.

14

A43395

RUBBER INSULATOR

SLEEVE - insulating

2шт.

15

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- bearing seal

1шт.

16

A48429

HOUSING

- rectifier end

1шт.

17

A48410

DIODE

- isolation

1шт.

18

A47613

WASHER

- insulation, 1/4" ID

1шт.

19

192-40

LOCK WASHER,1/4"

black 1/4"

1шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

21

A48409

WASHER

- insulation, 13/64" ID

2шт.

22

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

23

A41060

LOCK NUT

NUT - hex, with lock washer, No.10 - 24 NC

4шт.

24

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

4шт.

25

A41048

BRUSH, COMMUTATOR

BRUSH ASSEMBLY - with holder

1шт.

26

A43400

SHIELD

- dirt

1шт.

27

A43399

COVER

- brush assembly

1шт.

28

182-519

SCREW,Sl Pan Hd, #4 - 40 x 3/16"

- machine, pan head slotted, No. 4 - 40 NC x 3/16"

2шт.

29

A44423

BOLT

- hex head, No. 10 - 24 NC x 2-55/64", special

4шт.

30

A47610

NUT

- square, No. 10 - 24 NC

4шт.

31

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

32

A44678

PULLEY

- alternator, does not come with alternator, order separately

1шт.

33

H107516

GOVERNOR

REGULATOR - voltage

1шт.
