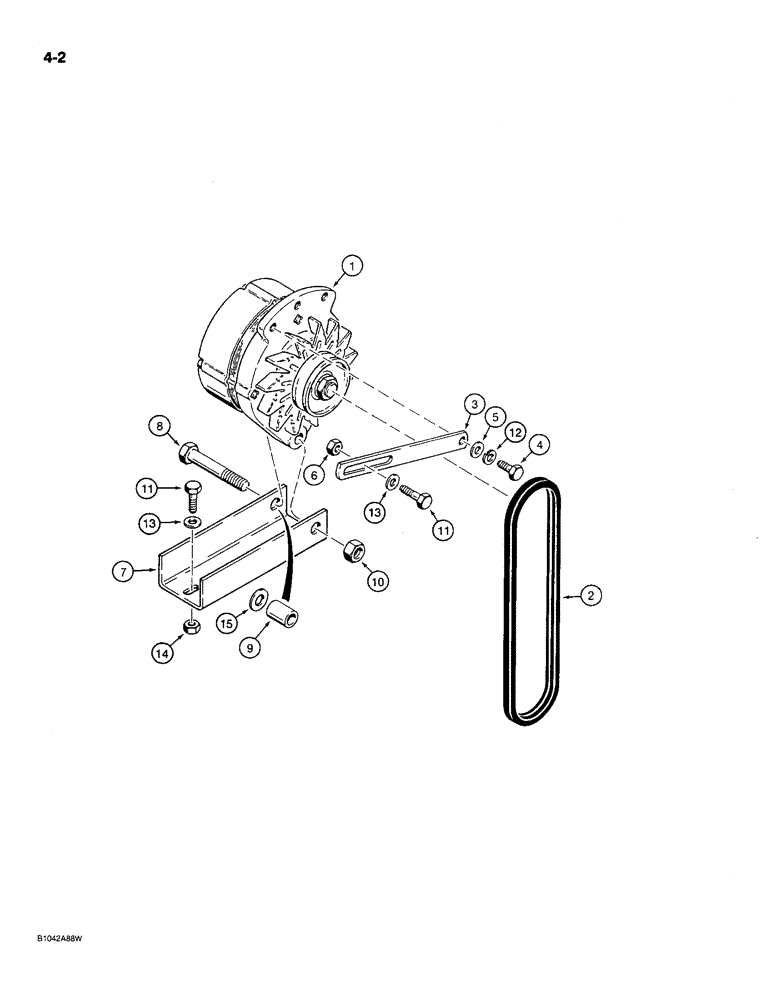

Запчасти Case MAXI-SNEAKER C (4-02) - ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine, for correct assembly and components see Figures 4-4 and 4-6

1шт.

2

H107557

V-BELT,0.38" W

Alternator Drive 0.38" W

1шт.

3

H62521

LINK

- adjusting, alternator

1шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

5

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

1шт.

6

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

1шт.

7

H398289

CHANNEL

BRACKET - alternator mounting

1шт.

8

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

9

A11719

SPACER

- bracket

1шт.

10

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

1шт.

11

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

13

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

3шт.

14

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

15

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

1шт.
