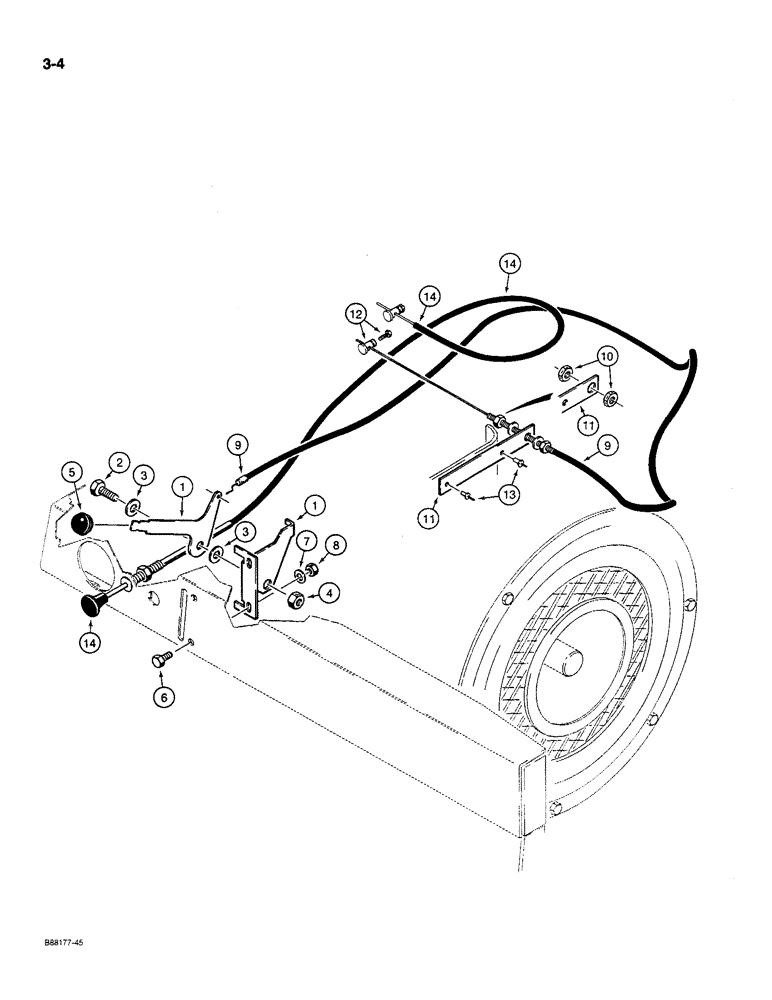

Запчасти Case MAXI-SNEAKER C (3-4) - THROTTLE CONTROL AND LINKAGE (03) - FUEL SYSTEM

H581736

CONTROL BLOCK

LEVER ASSEMBLY - throttle control, Includes: Ref. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

LEVER - throttle control, two-piece

1шт.

2

114-308

BOLT,Hex, 7/16" - 20 x 3/4", Gr 5, Full Thd

- hex head, 7/16" - 20 NF x 3/4", plated

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - special, nylon

2шт.

4

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF, plated

1шт.

5

H244434

KNOB

- throttle control lever

1шт.

6

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

7

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

8

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

9

H244467

CONTROL BLOCK

CABLE - throttle control

1шт.

10

H243782

NUT

- special, at cable mounting bracket

2шт.

11

H194852

BRACKET

- cable mounting

1шт.

12

H43034

JOINT TURNING

RETAINER - throttle cable, two-piece

1шт.

13

151-558

RIVET,Pop, 3/16" x .450"

- pop, 3/16" x 1/2"

2шт.

14

H147991

CABLE

- choke, includes knob, hardware, and retainer

1шт.
