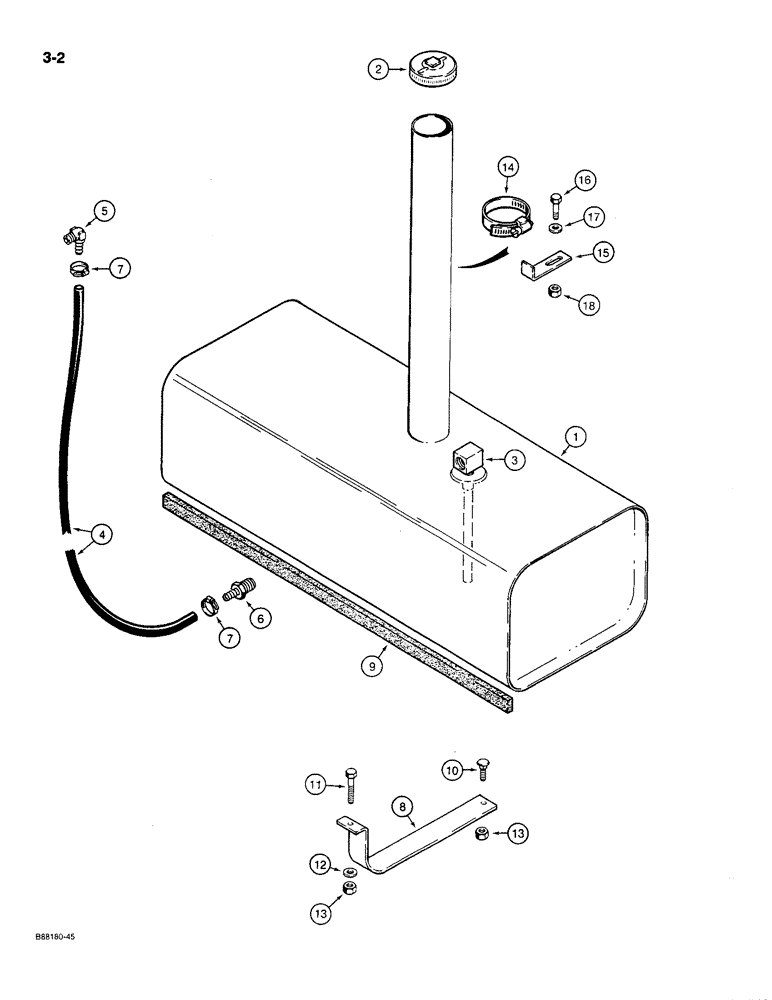

Запчасти Case MAXI-SNEAKER C (3-2) - FUEL TANK AND FUEL LINES (03) - FUEL SYSTEM

H652149

FUEL TANK

TANK ASSEMBLY - fuel, Includes: Ref. 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

TANK - fuel

1шт.

2

H151274

CYLINDER END CAP

CAP - fuel tank

1шт.

3

H652313

FUEL TUBE,0.375 mm OD x 197 mm L

ELBOW - fuel tank

1шт.

4

D90238

HOSE,0.25" ID x 50.00"

Fuel, Cut From A21561 Bulk Hose, See Below 0.25" ID x 50.00"

1шт.

5

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

- barb, 90 degree, brass

1шт.

6

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

- barb, straight

1шт.

7

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP - hose

2шт.

8

H396226

STRAP

BRACKET - fuel tank mounting

2шт.

9

H165464

DOOR

PAD - fuel tank

1шт.

10

111-132

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - carriage, 5/16" - 18 NC x 3/4", plated

2шт.

11

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

12

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

13

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

14

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- fuel tank neck #28, 1.31/2.25 Type F Worm

1шт.

15

H224774

BRACKET

- fuel tank neck

1шт.

16

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

17

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

1шт.

18

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

1шт.

A21561

HOSE,0.25" ID x 25.00"

0.25" ID x 25.00' - Bulk

1шт.
