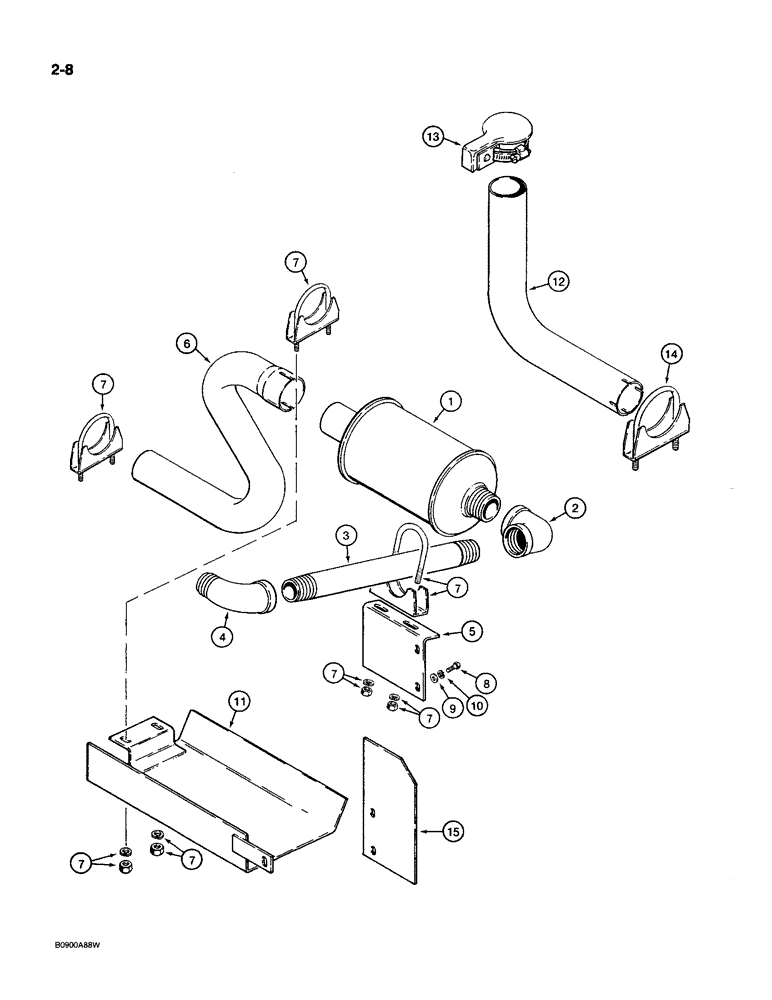

Запчасти Case MAXI-SNEAKER C (2-8) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

H248039

MUFFLER

- engine exhaust

1шт.

2

221-380

ELBOW,90 Degree, 1 1/4" NPT

- 90 degree, 1-1/4" NPT

1шт.

3

221-725

PIPE,Nipple, 1 1/4" NPT x 13 1/2"

NIPPLE - 13-1/2" NPT x 1-1/4"

1шт.

4

221-417

ELBOW,90 Degree, 1 1/4"-11 1/2, NPT

- street, 90 degree, 1-1/4" NPT

1шт.

5

H407650

ANGLE

- muffler support, used on models without ref. 11 heat shield

1шт.

6

H397240

TUBE,46 mm ID x 47.6 mm OD

- exhaust

1шт.

7

L73301

CLAMP,51mm ID

ASSEMBLY - includes hardware

3шт.

8

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

9

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

11

H672298

SHIELD

- heat, muffler

1шт.

12

H102210

ELBOW UNION

EXTENSION - exhaust, used on models with Hydra-Borer, if used

1шт.

13

H224378

CYLINDER END CAP

CAP - exhaust extension, used on models with Hydra-Borer, if used

1шт.

14

R11500

CLAMP

ASSEMBLY - includes hardware, used on models with Hydra-Borer, if used

1шт.

15

H433801

SHIELD

- heat

1шт.
