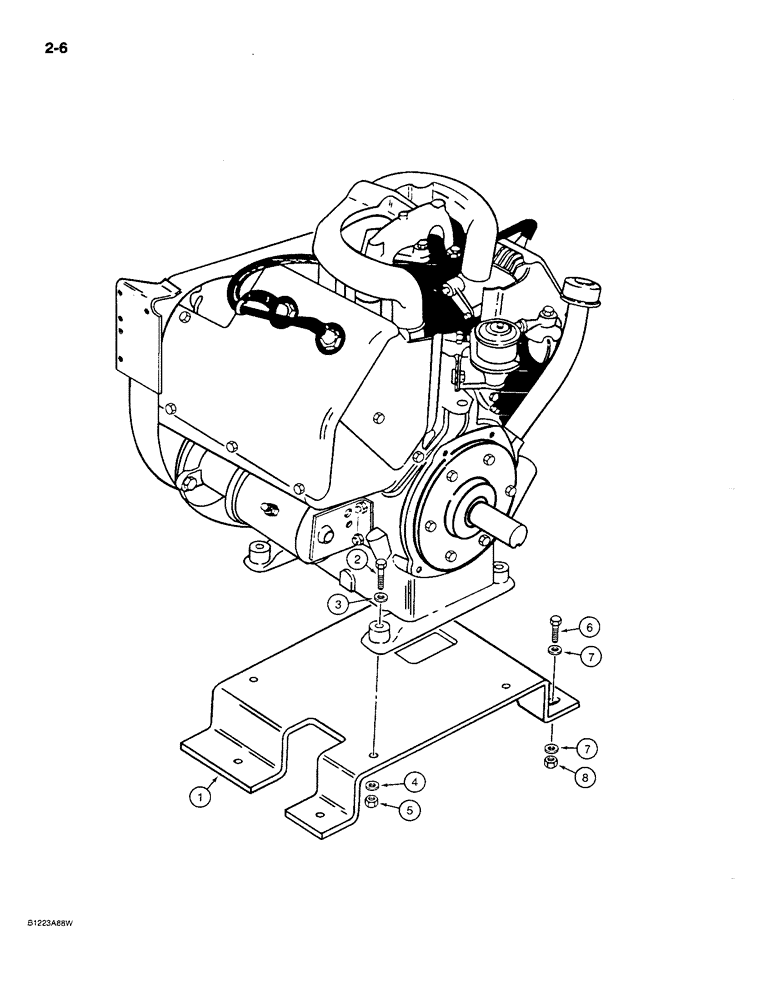

Запчасти Case MAXI-SNEAKER C (2-6) - ENGINE MOUNTING (02) - ENGINE

1

H396143

MOUNTING PARTS

MOUNT - engine

1шт.

2

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

4шт.

3

H274894

WASHER

- flat, 17/32" ID x 1-5/64" OD, plated, special

4шт.

4

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened, plated

4шт.

5

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

4шт.

6

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

7

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

8шт.

8

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

4шт.

9

H659318

CATALOG

ENGINE - Wisconsin, not shown, see your authorized Case dealer for engine components

1шт.
