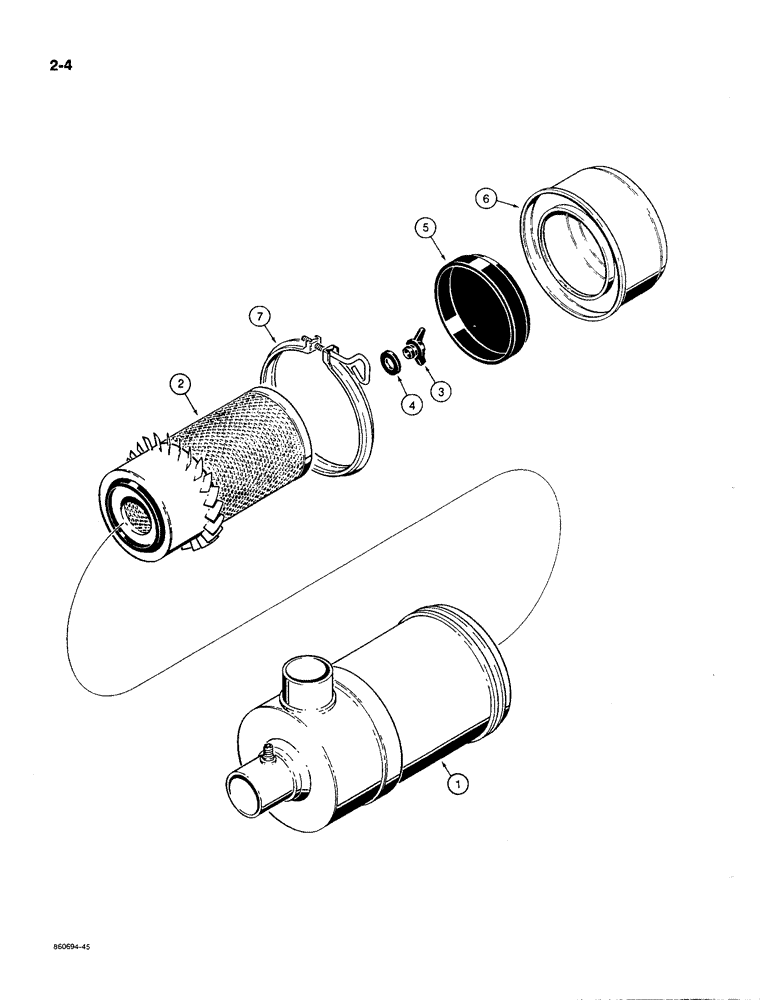

Запчасти Case MAXI-SNEAKER C (2-4) - AIR CLEANER (02) - ENGINE

D55203

CLEANER ASSY.

CLEANER ASSEMBLY - air, engine, for mounting hardware see Figure 2-2, Includes: Ref. 1-7

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - air cleaner

1шт.

2

D48198

AIR CLEANER

ELEMENT - air cleaner

1шт.

D78354

WING NUT

NUT ASSEMBLY - element, Includes: Ref. 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

NUT - wing, element

1шт.

4

D37976

GASKET,14.61mm ID x 27.43mm OD x 3.3mm Thk

- nut

1шт.

5

D48200

BAFFLE

- rubber

1шт.

6

D48201

CUP

- dust, access, air cleaner

1шт.

7

D48199

CLAMP

ASSEMBLY - includes hardware, air cleaner

1шт.
