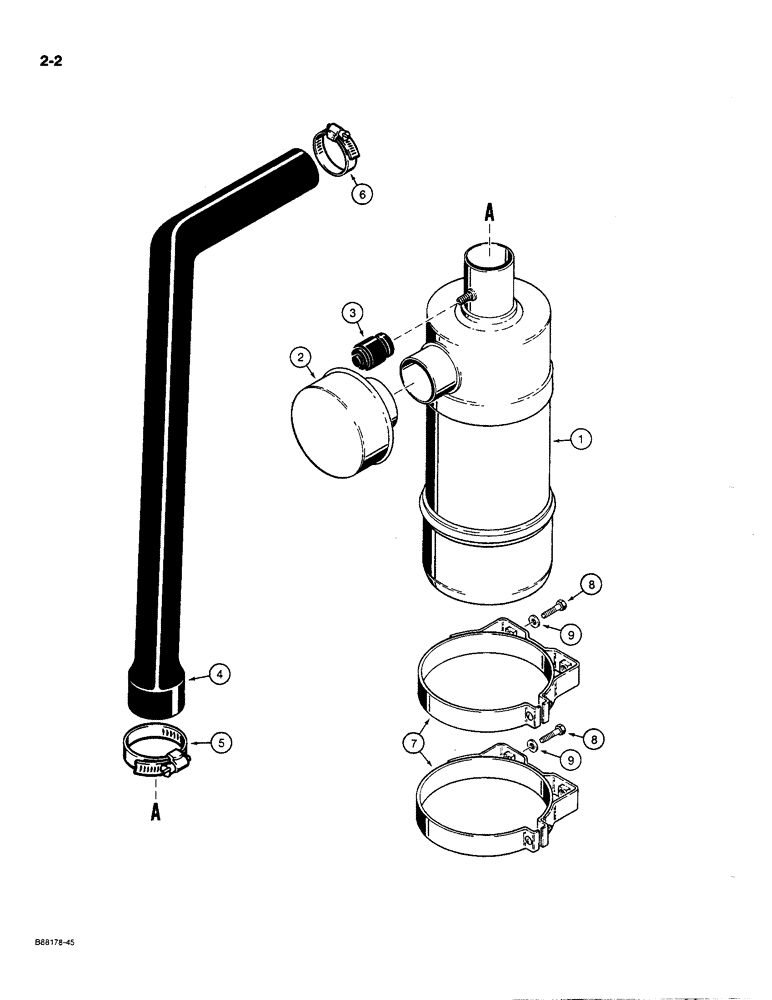

Запчасти Case MAXI-SNEAKER C (2-2) - AIR CLEANER AND MOUNTING (02) - ENGINE

1

D55203

CLEANER ASSY.

CLEANER ASSEMBLY - air, engine, parts list Figure 2-4

1шт.

2

D22685

CAP

- air cleaner intake

1шт.

3

A59569

INDICATOR

- air restriction

1шт.

4

H398396

INTAKE AIR HOSE,38.10 mm ID x 350.00 mm, SAE 20R4 CLASS SC

HOSE - air cleaner to engine

1шт.

5

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- adjustable, at air cleaner #36, 1.81/2.75 Type F Worm

1шт.

6

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

at engine #24, 1.06/2.00 Type F Worm

1шт.

7

R41654

COLLAR CLAMP

CLAMP ASSEMBLY - includes hardware, air cleaner mounting

2шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

9

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.
