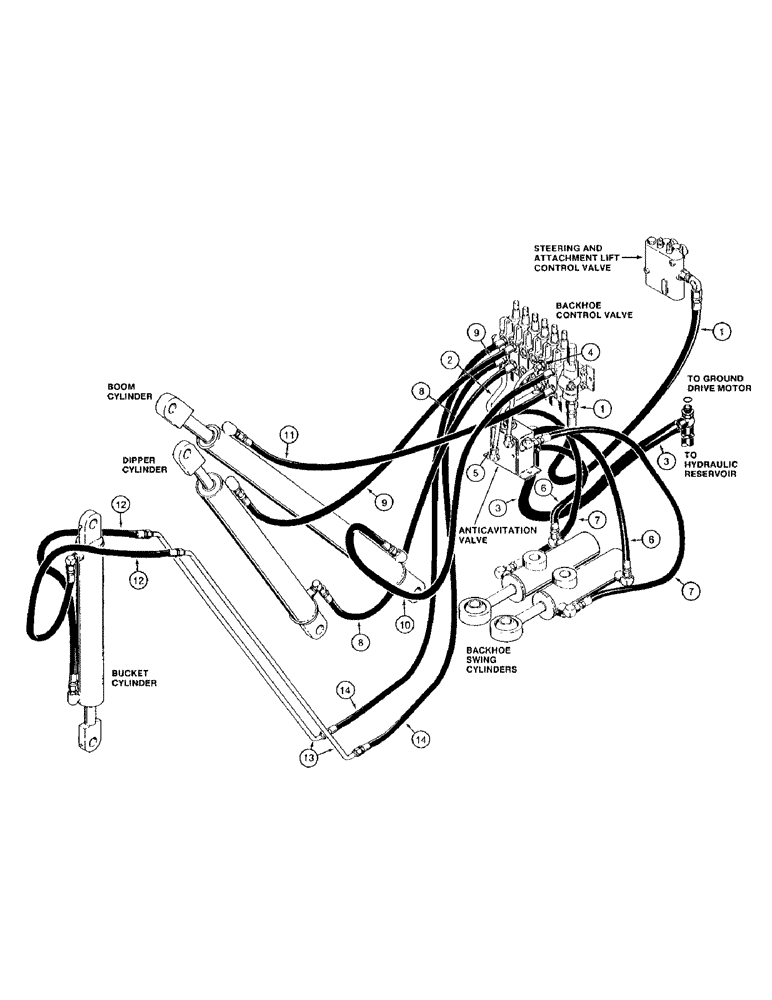

Запчасти Case MAXI-SNEAKER C (1-8) - PICTORIAL INDEX, BACKHOE HYDRUALICS (00) - PICTORIAL INDEX

1

Hose at steering and attachment lift control valve, Page 8-25

1шт.

2

Tube at backhoe control valve outlet section, Page 8-25

1шт.

3

Hose at tee to ground drive motor and hydraulic reservoir, Page 8-25

1шт.

4

Tube at upper port of swing section of backhoe control valve, Page 8-27

1шт.

5

Tube at lower port of swing section of backhoe control valve, Page 8-27

1шт.

6

Hose at anticavitation valve to closed end of swing cylinders, Page 8-27

1шт.

7

Hose at anticavitation valve to rod end of swing cylinders, Page 8-27

1шт.

8

Hose to closed end of dipper cylinder, Page 8-29

1шт.

9

Hose to rod end of dipper cylinder, Page 8-29

1шт.

10

Hose to closed end of boom cylinder, Page 8-31

1шт.

11

Hose to rod end of boom cylinder, Page 8-31

1шт.

12

Hose to bucket cylinder, Page 8-33

1шт.

13

Tube to bucket cylinder, Page 8-33

1шт.

14

Hose to backhoe control valve bucket section, Page 8-33

1шт.
