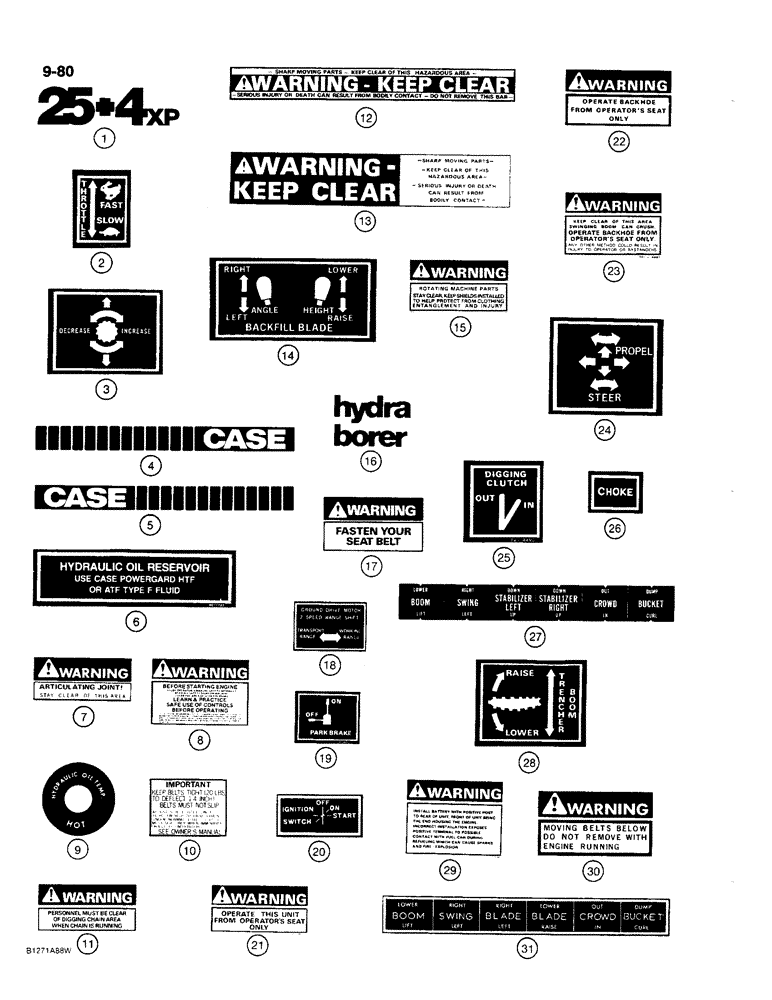

Запчасти Case MAXI-SNEAKER C (9-80) - DECALS (09) - CHASSIS/ATTACHMENTS

H672021

KIT

- decal, brown, Includes: Ref. 1-31

1шт.

1

H427716

DECAL

- 25 + 4 XP, brown

2шт.

2

321-4470

DECAL

- Throttle, Fast/Slow

1шт.

3

H289694

DECAL

- creep control, increase/decrease, used on models with mono-stick

1шт.

4

H427690

DECAL

- CASE, left-hand

1шт.

5

H427708

DECAL

- CASE, right-hand

1шт.

6

H428541

DECAL - Hydraulic Oil Reservoir (replaces H277723)

1шт.

7

321-3218

DECAL

- Warning, articulating joint

1шт.

8

321-3705

DECAL

- Warning, before starting engine

1шт.

9

H286922

DECAL

- oil temperature light

1шт.

10

H194761

DECAL

- Important, keep belts tight

1шт.

11

321-3214

DECAL

- Warning, personnel must be clear of digging chain

2шт.

12

321-6687

DECAL

- Warning, keep clear, sharp moving parts

2шт.

13

321-6259

DECAL

- Warning, keep clear, sharp moving parts

2шт.

14

321-4391

DECAL

- hydraulic angle blade control levers

1шт.

15

321-3710

DECAL

- Warning, Rotating Machine Parts, PTO shield

2шт.

16

H427880

DECAL

- hydra borer

1шт.

17

321-3217

DECAL

- Warning, fasten your seat belt

1шт.

18

H196667

DECAL

- ground drive shift

1шт.

19

321-5287

DECAL

- park brake, on off

1шт.

20

321-6396

DECAL

- ignition switch pattern

1шт.

21

321-3905

DECAL

- Warning, operate this unit from operator's seat only

1шт.

22

321-3054

DECAL

- Warning, backhoe operation

1шт.

23

321-4481

DECAL

- Warning, keep clear of this area swinging boom can crush

2шт.

24

H26627

DECAL - directional control

1шт.

25

321-4495

DECAL

- digging clutch

1шт.

26

H422857

DECAL

- choke

1шт.

27

H102749

DECAL

- backhoe controls

1шт.

28

321-4471

DECAL

- trencher boom

1шт.

29

321-6323

DECAL

- Warning, incorrectly installed battery

1шт.

30

321-2753

DECAL

- Warning, moving belts

1шт.

31

321-4652

DECAL

- SD70 operation

1шт.

DECAL-DANGER STARTING UNIT IS 321-7040.

1шт.
