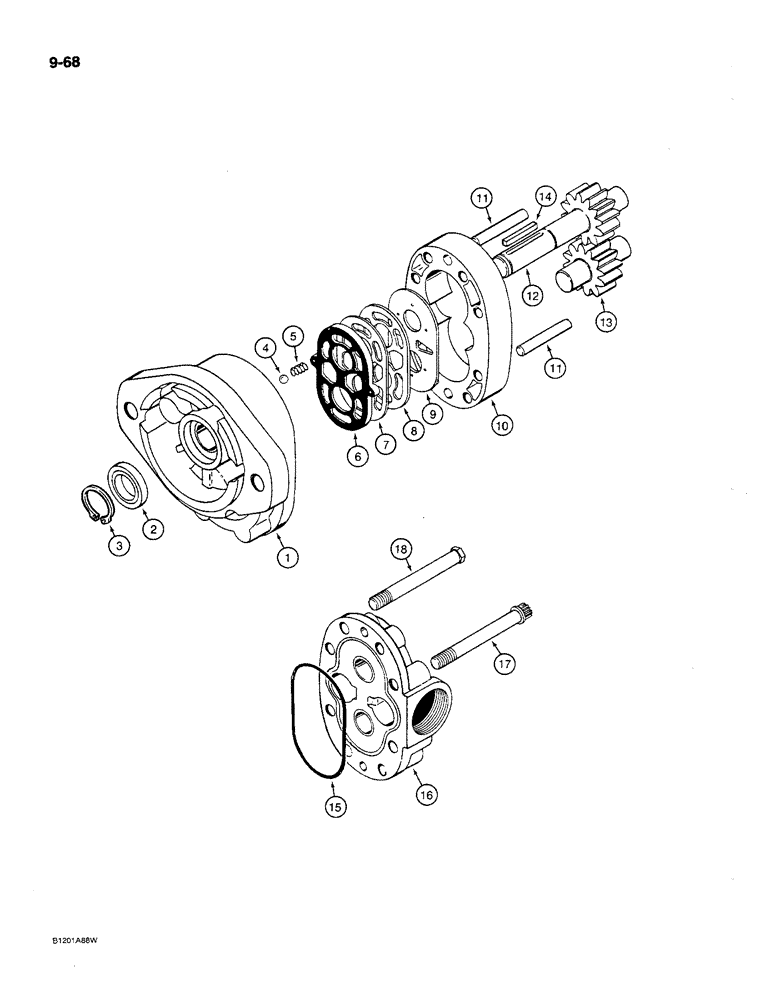

Запчасти Case MAXI-SNEAKER C (9-68) - HYDRA-BORER GEAR PUMP ASSEMBLY (09) - CHASSIS/ATTACHMENTS

H601617

PUMP

ASSEMBLY - gear, Hydra-Borer, Includes: Ref. 1-18

1шт.

1

H501577

PLATE ASSY.

HOUSING - drive end

1шт.

2

F11406

SEAL

- shaft

1шт.

3

A27521

SNAP RING,#68, Ext

RING, Snap, , drive end housing #68, Ext

1шт.

4

211-205

BALL

- 7/32", chrome alloy steel, grade 25

2шт.

5

F9883

SPRING

- ball

2шт.

6

H262469

SEAL

- diaphgram

1шт.

7

H366922

GASKET

- backup

1шт.

8

H262477

GUARD

GASKET - protector

1шт.

9

D77645

DIAPHRAGM

- pump, drive end

1шт.

10

H203679

HOUSING

- gear

1шт.

11

H753848

AXLE PIN

PIN - dowel, 5/16" x 1-3/8", gear housing

2шт.

12

H602847

GEAR - drive

1шт.

13

R33010

GEAR WHEEL

GEAR - driven

1шт.

14

H233346

KEY

- shaft

1шт.

15

H758599

O-RING,2.989" ID x 3.129" OD

- housing

1шт.

16

N6036

PLATE

HOUSING - port end

1шт.

17

166-33

12 PT SCREW,Flg, 5/16" - 18 x 2 3/4", Gr 8

BOLT - Ferry head, 5/16" - 18 NC x 2-3/4", grade 8

4шт.

18

166-31

12 PT SCREW,Flg, 5/16" - 18 x 2 1/4", Gr 8

BOLT - Ferry head, 5/16" - 18 NC x 2-1/4", grade 8

4шт.
