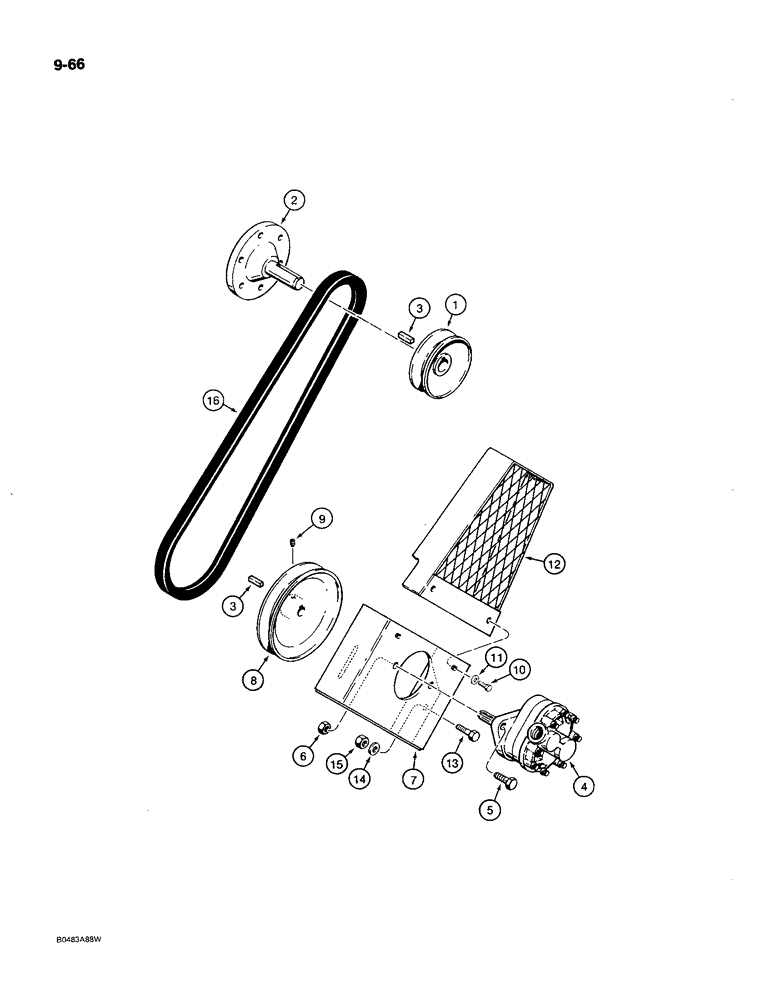

Запчасти Case MAXI-SNEAKER C (9-66) - HYDRA-BORER GEAR PUMP MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H397091

SHEAVE

- drive

1шт.

2

H397083

SHAFT

ADAPTER - drive

1шт.

3

H233346

KEY

- sheave

2шт.

4

H601617

PUMP

ASSEMBLY - gear, parts list Figure 9-68

1шт.

5

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

2шт.

6

131-1129

LOCK NUT,7/16"-14, GA

NUT - hex, self-locking, 7/16" - 14 NC, plated

2шт.

7

H652206

MOUNTING PARTS

BRACKET - pump mounting

1шт.

8

H188680

SHEAVE

- driven

1шт.

9

83-56

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, hex socket, 5/16" - 18 NC x 3/8", cup point

1шт.

10

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

11

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

12

H652214

GUARD

- belt

1шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

14

195-522

WASHER,5/16"

- flat, , plated 5/16"

2шт.

15

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

16

H397109

BELT,31.00" L

Drive 31.00" L

1шт.
