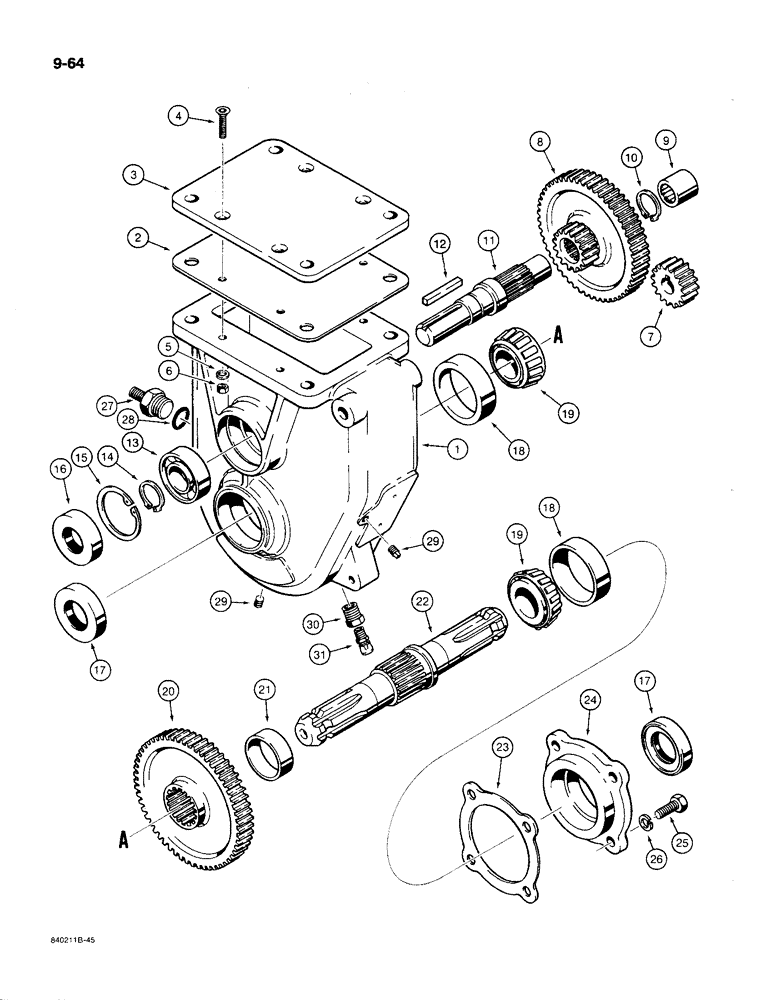

Запчасти Case MAXI-SNEAKER C (9-64) - HYDRA-BORER GEARBOX (09) - CHASSIS/ATTACHMENTS

H666875

GEARBOX ASSY

GEARBOX ASSEMBLY - Hydra-Borer, for mounting hardware see Figure 9-62, Includes: Ref. 1-31

1шт.

1

H424234

HOUSING

- gearbox

1шт.

2

H425991

GASKET

- cover plate

1шт.

3

H426015

PLATE

- cover, bottom

1шт.

4

164-33

HEX SOC SCREW,Flat Hd, 1/4" - 20 x 1 1/4"

BOLT - hex socket flat head, 1/4" - 20 NC x 1-1/4", grade 8

4шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

7

H426023

SPUR

GEAR - input pinion, mounts on motor shaft

1шт.

REF 7, H436023 IS NOT PART OF GEARBOX ASSY PER PRINT.

1шт.

8

H425967

GEAR

- reduction

1шт.

9

A28210

BEARING, NEEDLE,1" ID x 1.25" OD x 1"

BEARING - needle, countershaft

1шт.

10

B18208

SNAP RING,#100, Ext

countershaft, gear #100, Ext

1шт.

11

H668020

SHAFT

COUNTERSHAFT - reduction gear

1шт.

12

T25070

KEY

- square, 1/4" x 2" long

1шт.

13

40040

BALL BEARING,1.1811" ID x 2.4409" OD x 0.6299"

- ball, countershaft, output end

1шт.

14

A8218

SNAP RING,#118, Ext

RING, Snap, , bearing and shaft #118, Ext

1шт.

15

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , brg 2.44", Int, #244

1шт.

16

H759050

SEAL

- oil, countershaft, output end

1шт.

17

H759068

SEAL

- oil, output shaft

2шт.

18

A30580

BEARING CUP

CUP - tapered roller bearing

2шт.

19

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

BEARING - tapered roller

2шт.

20

H425975

GEAR

- output

1шт.

21

H425959

SPACER

- output gear

1шт.

22

H425983

SHAFT

- output, gearbox

1шт.

23

H426031

GASKET

SHIM - cover

1шт.

24

H426007

BEARING CAP

COVER - bearing retaining

1шт.

25

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

27

H425942

PLUG

STUD - anchor

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- stud

1шт.

29

221-847

PLUG,Hex Soc, 1 1/4"-11 1/2

- pipe, hex socket head, 1/8" NPT

2шт.

30

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

- 3/8" NPT to 1/8" NPT

1шт.

31

L33264

BREATHER

- housing

1шт.
