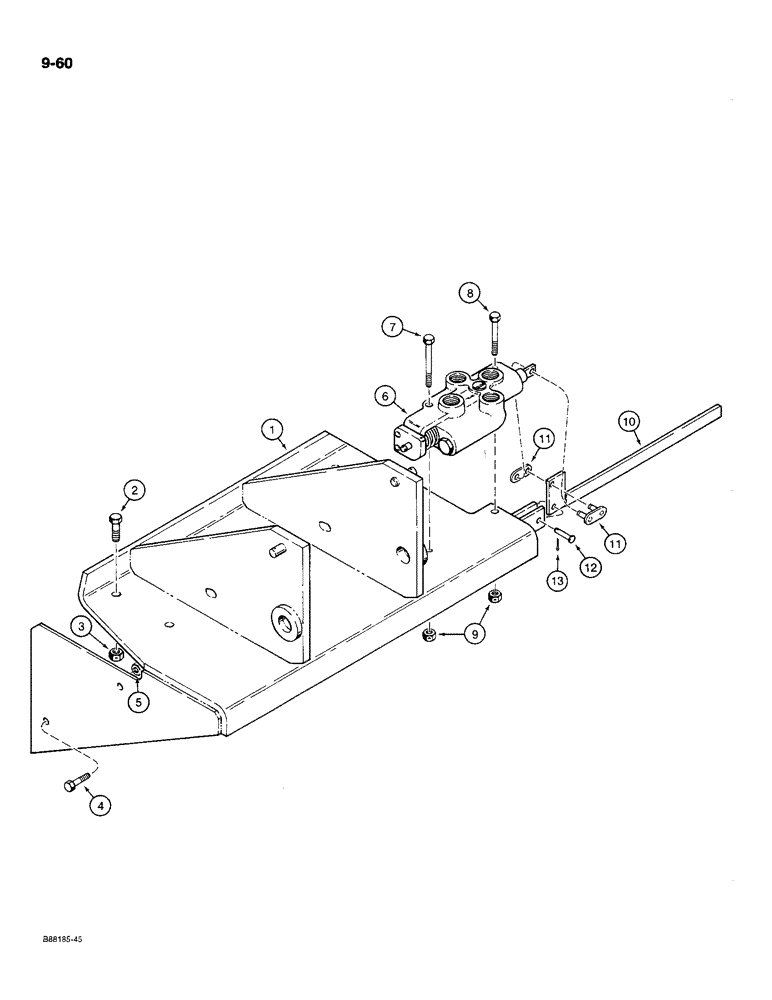

Запчасти Case MAXI-SNEAKER C (9-60) - HYDRA-BORER CONTROL VALVE MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H644468

BRACKET

FRAME - Hydra-Borer mounting

1шт.

2

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

6шт.

3

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

6шт.

4

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

5

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

6

H544718

LOCK VALVE

VALVE ASSEMBLY - control, Hydra-Borer, parts list Figure 8-43

1шт.

7

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

8

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

1шт.

9

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

10

H654608

HANDLED SHAFT

LEVER - control valve

1шт.

11

B12505

LINK

- connector, complete

1шт.

12

H35279

AXLE PIN,4.72mm OD x 23.76mm L

PIN - clevis, 3/16" x 57/64" long, special

1шт.

13

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.
