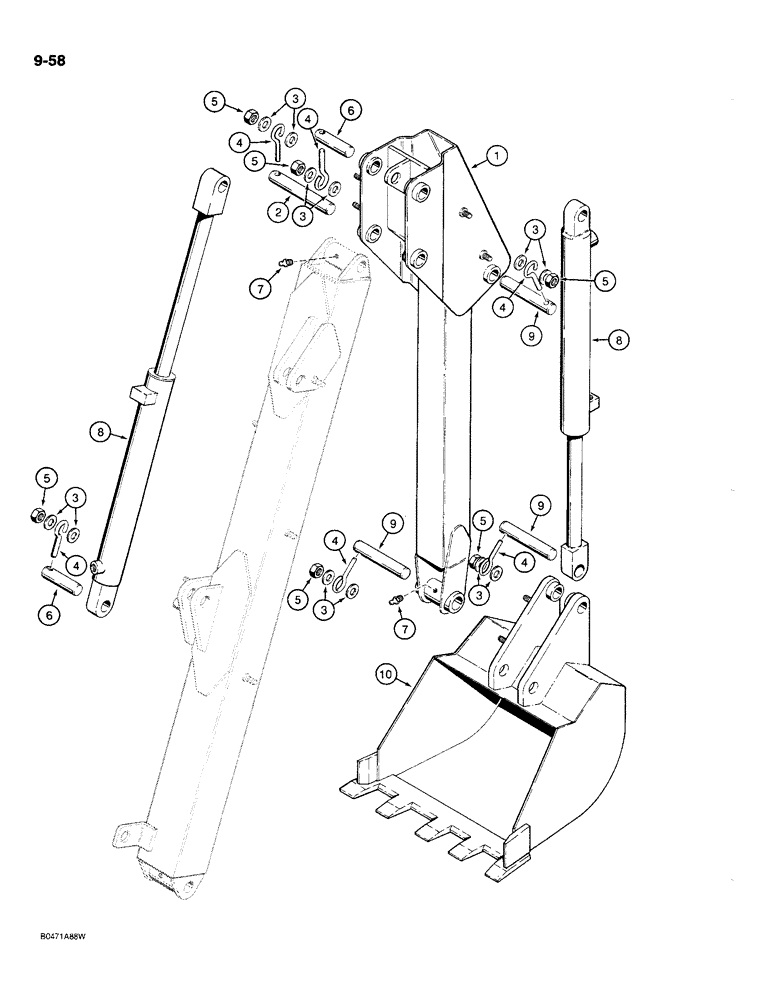

Запчасти Case MAXI-SNEAKER C (9-58) - BACKHOE DIPPER AND BUCKET, USED ON MODELS WITH SD-70 BACKHOE (09) - CHASSIS/ATTACHMENTS

1

H622076

SWITCH

DIPPER - backhoe

1шт.

2

D55925

PIN,25.4mm OD x 165.1mm L

- dipper mounting

1шт.

3

195-104

WASHER,3/8"

- flat, , plated 3/8"

12шт.

4

H313981

PIN

- retainer

6шт.

5

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

6шт.

6

H333369

AXLE PIN

PIN - mounting, dipper cylinder to boom and dipper

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

8

H622027

CYLINDER

ASSEMBLY - backhoe dipper and bucket, parts list

2шт.

9

H332304

AXLE PIN

PIN - bucket and bucket cylinder mounting

3шт.

10

REF

INSTRUCTION

BUCKET - backhoe, see Figure 9-52 for bucket options

1шт.
