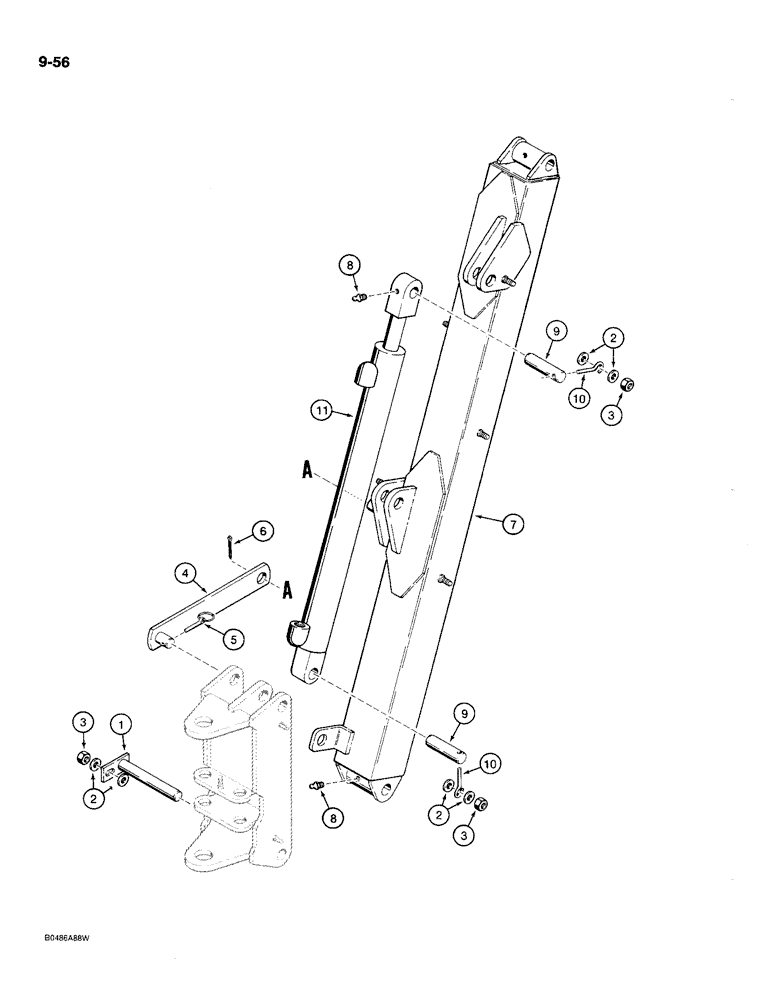

Запчасти Case MAXI-SNEAKER C (9-56) - BACKHOE BOOM MOUNTING, USED ON MODELS WITH SD-70 BACKHOE (09) - CHASSIS/ATTACHMENTS

1

H636092

AXLE PIN

PIN - swing, Serial Range: tower-boom

1шт.

2

195-104

WASHER,3/8"

- flat, , plated 3/8"

6шт.

3

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

3шт.

4

H647875

DRAG LINK

LINK - transport

1шт.

5

A30338

PIN

- link

1шт.

6

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

1шт.

7

H649327

BOOM

- backhoe

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

9

H333369

AXLE PIN

PIN - boom cylinder mounting

2шт.

10

H313981

PIN

- retainer, boom cylinder

2шт.

11

H622019

CYLINDER BLOCK

CYLINDER ASSEMBLY - backhoe boom, parts list Figure 8-34

1шт.
