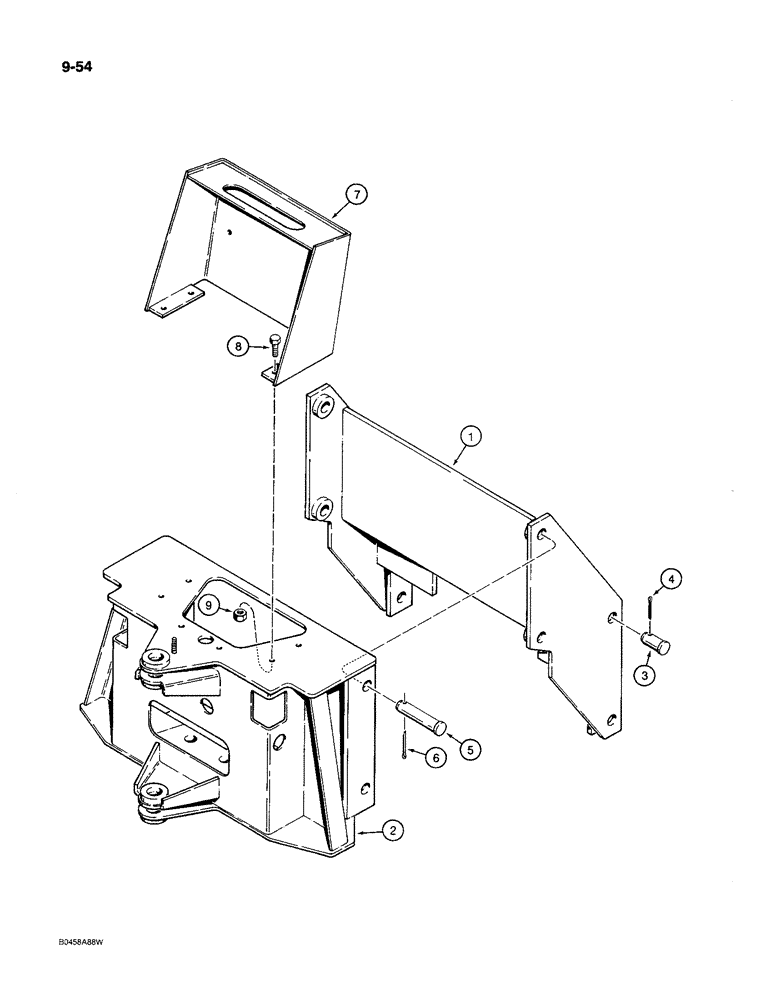

Запчасти Case MAXI-SNEAKER C (9-54) - BACKHOE FRAME AND CONTROL COVER MOUNTING, USED ON MODELS WITH SD-70 BACKHOE (09) - CHASSIS/ATTACHMENTS

1

H629972

FRAME

BRACKET - backhoe frame mounting

1шт.

2

H632737

FRAME ASSY

FRAME - backhoe mounting

1шт.

3

H65003

AXLE PIN

PIN - clevis, 1" x 2"

4шт.

4

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

4шт.

5

H68676

RETAINER

PIN - clevis, 1" x 4-3/8"

4шт.

6

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

4шт.

7

H632711

CONSOLE

COVER - backhoe control valve and linkage

1шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

9

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.
