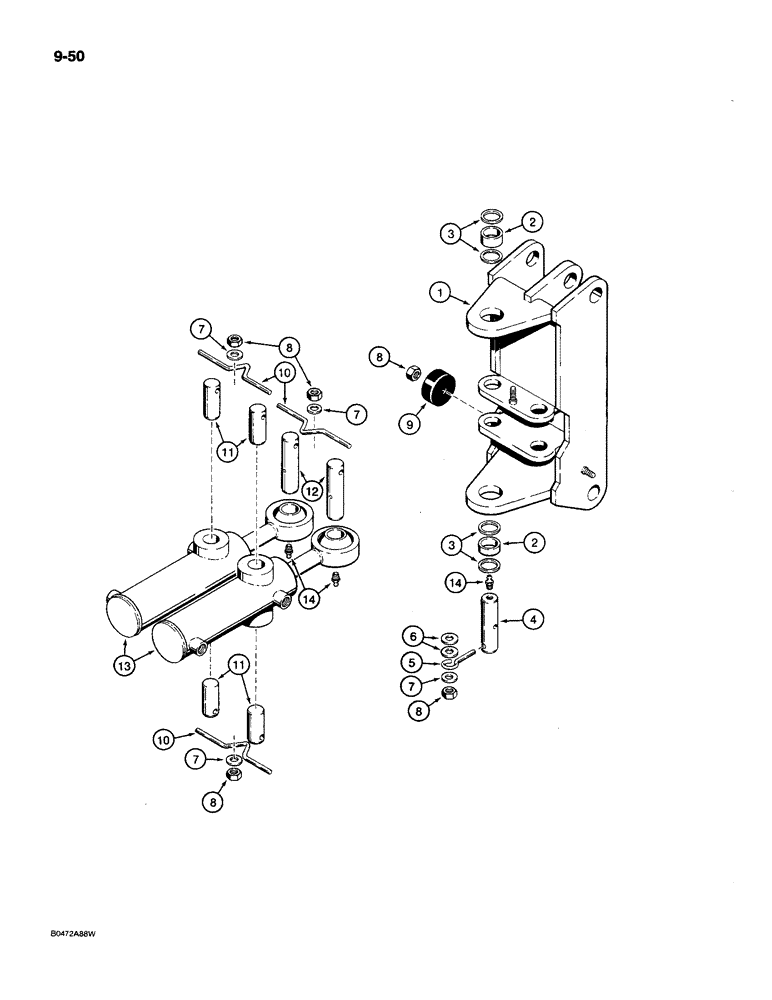

Запчасти Case MAXI-SNEAKER C (9-50) - BACKHOE SWING TOWER MOUNTING, USED ON MODELS WITH SD-70 BACKHOE (09) - CHASSIS/ATTACHMENTS

1

H622050

BOOM

TOWER - swing, backhoe, Includes: Ref. 2

1шт.

2

H338947

BUSHING

- swing tower

2шт.

3

H113241

BEARING WASHER

SPACER - swing tower

4шт.

4

H332155

AXLE PIN

PIN - swing tower to rear frame

2шт.

5

H313981

PIN

- retainer, swing tower pin

2шт.

6

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

4шт.

7

195-104

WASHER,3/8"

- flat, , plated 3/8"

5шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

7шт.

9

H343574

BUMPER

- swing tower

2шт.

10

H339101

AXLE PIN

RETAINER - pin

3шт.

11

H332213

AXLE PIN

PIN - 2-19/64" long, at cylinder trunnion

4шт.

12

H332205

AXLE PIN

PIN - 3-13/16" long, at cylinder rod end

2шт.

13

H622001

CYLINDER BLOCK

CYLINDER ASSEMBLY - backhoe swing, parts list Figure 8-38

2шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

4шт.
