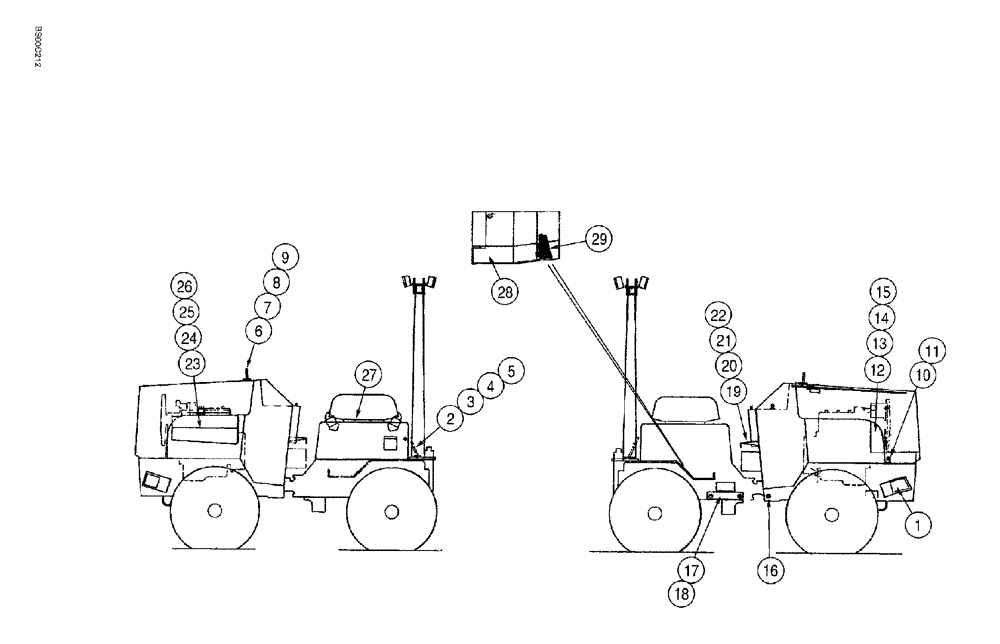

Запчасти Case MAXI-SNEAKER (09-05A) - LIFT HOOKS, ASSIST HANDLE, GUARDS & LOCKING FUEL CAP, ENG UNIT ONLY - MAXI SNEAKER SERIES C TRENCHER (09) - CHASSIS/ATTACHMENTS

1

223518A1

HOOK lift, front

2шт.

2

223519A1

BRACKET

HOOK lift, rear

2шт.

3

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

4шт.

4

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

4шт.

5

232-4118

NUT,1/2"-13, GC

4шт.

6

223506A1

HANDLED SHAFT

HANDLE assist, front

1шт.

7

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

8

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

9

231-4145

NUT,5/16"-18, GB

4шт.

10

223503A1

EYE

BRACKET hood lock

1шт.

11

151-559

RIVET,Pop, 4.75mm OD x 12.7mm L

Break mandrel

2шт.

12

223520A1

SHIELD

GUARD engine fan

1шт.

13

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

14

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

15

231-4145

NUT,5/16"-18, GB

2шт.

16

223517A1

BOSS alignment, Serial Range: welded-frame

3шт.

17

223516A1

PLATE

articulation lock

1шт.

18

136-164

COTTER PIN,Int, 5/16" x .120"

cotter, hair, 5/16 x 2-25/32 inch

2шт.

19

223513A1

PLATE

GUARD hydraulic pump

1шт.

20

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

21

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

22

231-4145

NUT,5/16"-18, GB

2шт.

23

321052A1

GUARD

muffler

1шт.

24

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

25

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

26

231-4145

NUT,5/16"-18, GB

2шт.

27

108925A1

FILLER CAP

fuel, locking, includes two keys

1шт.

28

223522A1

PLATE extension, Serial Range: welded-platform

1шт.

29

H431171

ADHESIVE STRIP

STRIP anti-skid, 406 mm (16 inch) long, cut from H431205 bulk strip, see below

2шт.

H431205

ADHESIVE STRIP

STRIP anti skid, bulk, 635 mm (25 inch) long

1шт.
