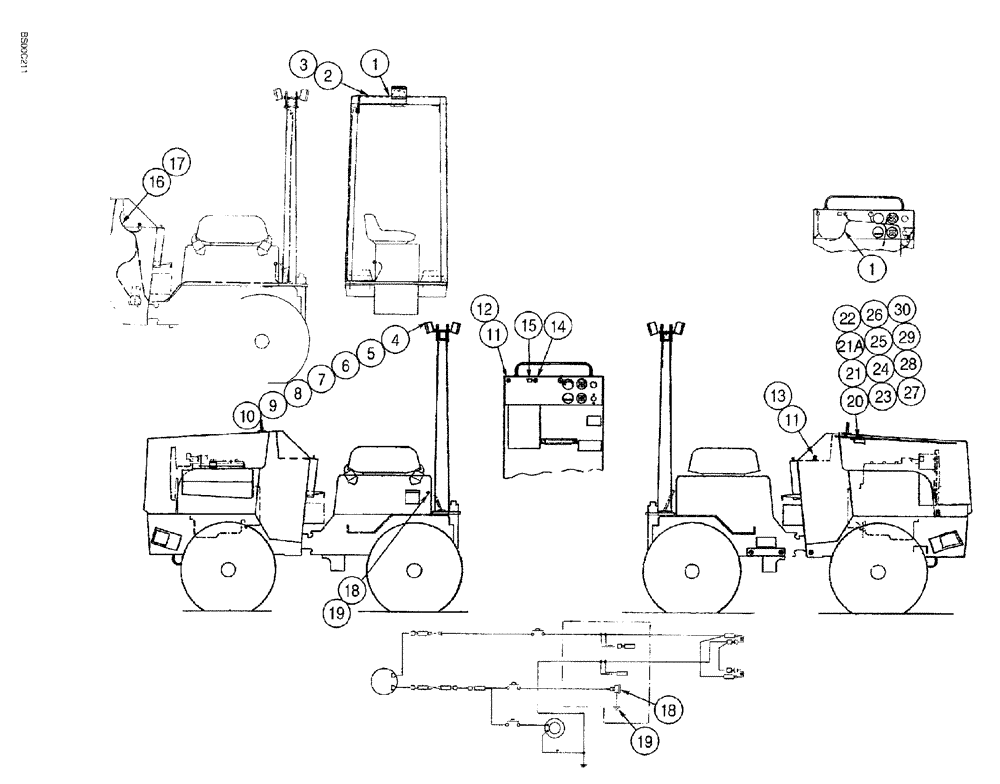

Запчасти Case MAXI-SNEAKER (04-03A) - ELECTRICAL HARNESS, LAMPS AND HORN ENGLISH UNITS ONLY - MAXI SNEAKER SERIES C TRENCHER (04) - ELECTRICAL SYSTEMS

1

223534A1

HARNESS

electrical, main

1шт.

2

H439303

CLIP

harness retaining, self-adhesive

1шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

4

D126237

HEADLIGHT

LAMP ASSEMBLY 12 volt, work

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

6

425-108

NUT,1/2" - 13, Gr 5

2шт.

7

243427A1

BRACKET

mounting, lamp

2шт.

8

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

4шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

4шт.

10

232-4116

NUT,3/8"-16, GC

4шт.

11

D74330

SWITCH

SWITCH ASSEMBLY work lamps and auxiliary receptacle

2шт.

12

108314A1

BUTTON

lamp switch

1шт.

13

178112A1

BUTTON

auxiliary switch

1шт.

14

D141486

SWITCH

button, horn

1шт.

15

D124182

DECAL

horn

1шт.

16

365543A1

HARNESS

electrical, fuse, rear

1шт.

17

A149802

FUSE

yellow, 20 ampere

1шт.

18

E47038

CONNECTION

RECEPTACLE lamp, auxiliary

1шт.

19

142209A1

ELECTRICAL WIRE

WIRE ground

1шт.

20

254130A1

HORN

"A" note, 12 volt

1шт.

21

864-5012

HEX SOC SCREW,M5 x 12mm, Cl 8.8

1шт.

21a

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

22

832-10405

NUT,M5 x .8, Cl 8

1шт.

23

253606A1

SUPPORT

horn mounting

1шт.

24

825-1406

NUT,M6, Cl 8

Horn mounting

1шт.

25

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

2шт.

26

95-81207

WASHER,0.53" ID x 0.81" OD x 0.07" Thk

flat, 17/32 x 13/16 x 1/16 inch

2шт.

27

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

28

492-11031

LOCK WASHER,5/16"

2шт.

29

425-105

NUT,5/16"-18, G5

2шт.

30

493-41026

LOCK WASHER,Ext Tooth, 1/4"

1шт.
