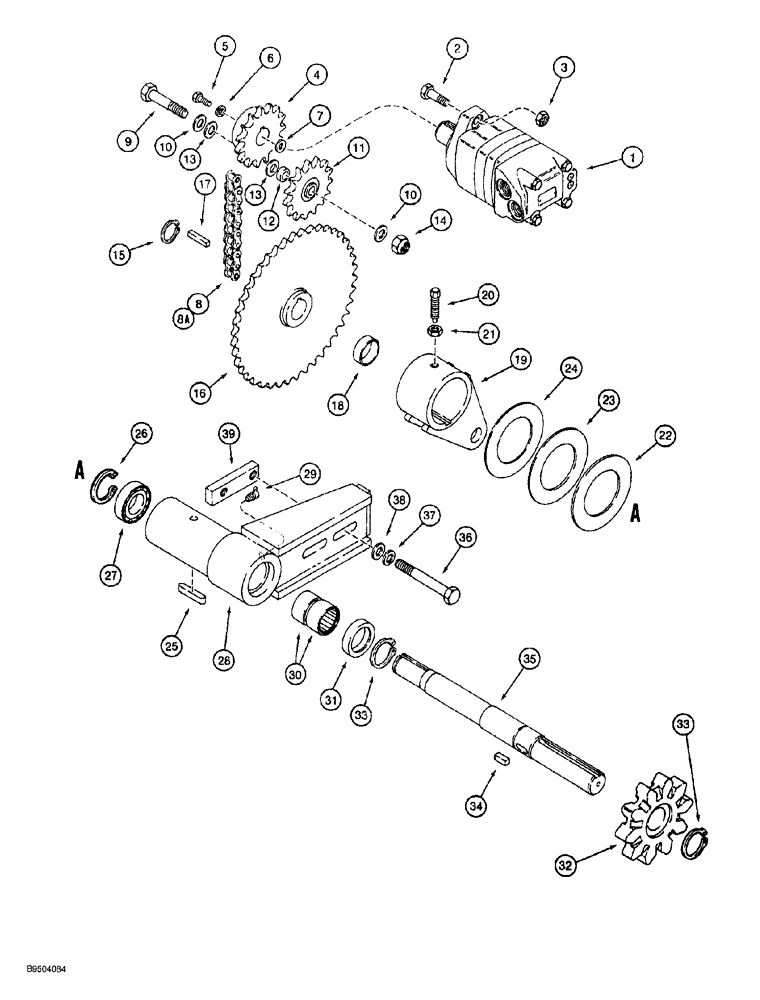

Запчасти Case MAXI-SNEAKER (09-016) - TRENCHER DRIVE LINE MOUNTING (09) - CHASSIS/ATTACHMENTS

1

188974A1

MOTOR

ASSEMBLY drive, parts list Figure 08-014

1шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

3

230-4218

LOCK NUT,1/2"-13, GA

hex, self locking, 1/2 inch NC

2шт.

4

H660217

DRIVE SPROCKET

motor, 15 tooth

1шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

8

H758862

CHAIN (AG)

ASSEMBLY trencher drive, Includes: Ref. 8A

1шт.

8a

D83132

LINK

master, chain

1шт.

9

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

hex, 5/8 NC x 2-3/4 inch

1шт.

10

495-21069

WASHER,5/8"

flat, 11/16 x 1-3/4 x 9/64 inch

2шт.

11

541857R92

SPROCKET,15T

idler, 15 teeth

1шт.

12

H114140

SPACER

7/8 OD x 1/2 inch

1шт.

13

H426809

SPACER

WASHER flat, special

2шт.

14

230-42110

LOCK NUT,5/8"-11, GA

hex, self locking, 5/8 inch NC

1шт.

15

100-11137

SNAP RING,#137, Ext

Digging chain drive sprocket

1шт.

16

H415554

DRIVE SPROCKET

digging chain

1шт.

17

H415604

KEY

square, to shaft, 8 x 32 mm

1шт.

18

H415562

SPACER

42 OD x 20.5 mm long

1шт.

19

H413492

ARM

CRANK boom

1шт.

20

H33746

SET SCREW,1/2" - 20 x 2 1/4"

set, special

1шт.

21

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

22

H260943

SHIM,.135" Thk

SHIM, , Crank (3.416 mm) .135" Thk

1шт.

23

H260950

SHIM,.060" Thk

(1.519 mm)

1шт.

24

H261834

SHIM,.030" Thk

(0.762 mm)

1шт.

25

H413625

KEY

square, to boom, 9.5 x 55 mm

1шт.

26

100-21244

SNAP RING,2.44", Int, #244

Brg

1шт.

27

636632R91

BALL BEARING,35mm ID x 62mm OD x 14mm W

ball, Replaces: 38742

1шт.

28

H413419

ARM

BRACKET mounting, pivot, boom

1шт.

29

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

30

F7356

NEEDLE BEARING,Needle, 38.1mm ID x 47.63mm OD x 22.23mm W

needle, rear

2шт.

31

60352C91

OIL SEAL

boom, Replaces: H758854

1шт.

32

H404004

DRIVE SPROCKET

digging chain, idler

1шт.

33

100-11150

SNAP RING,#150, Ext

Idler sprocket to shaft

2шт.

34

H404012

KEY

square, idler sprocket to shaft, 5/16 x 7/8 inch

1шт.

35

H407528

SHAFT

trencher drive

1шт.

36

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

37

492-11062

BEARING WASHER,5/8"

2шт.

38

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

39

H306191

PLATE ASSY.

lock

1шт.
