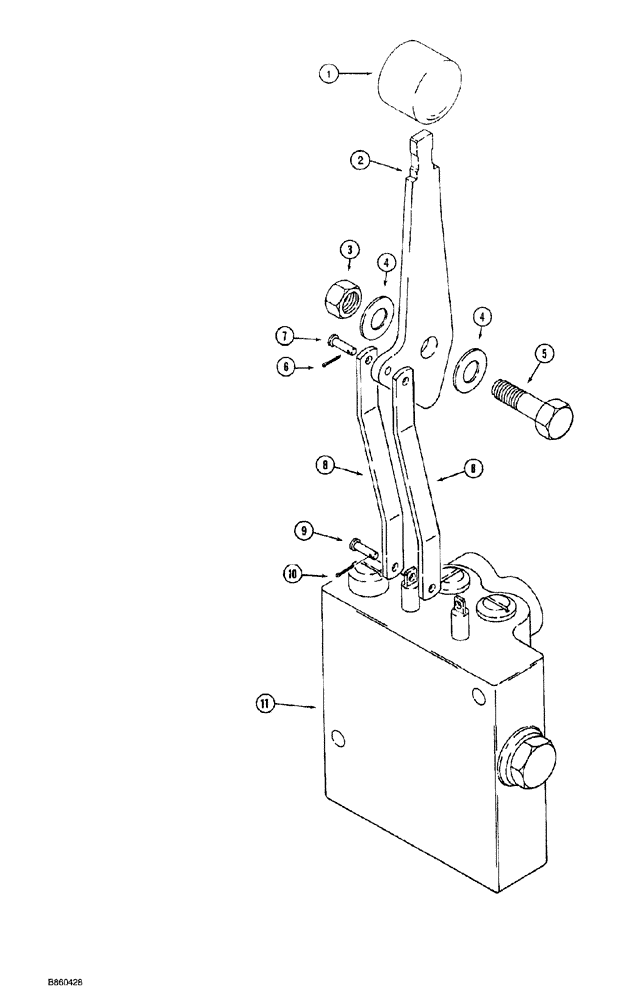

Запчасти Case MAXI-SNEAKER (09-012) - ATTACHMENT LIFT CONTROL (09) - CHASSIS/ATTACHMENTS

1

A177435

BALL KNOB

lever, attachment lift control

1шт.

2

H426197

HANDLE

control, attachment lift

1шт.

3

425-148

JAM NUT,Jam, 1/2"-13, G5

1шт.

4

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

6

432-48

COTTER PIN,1/16" x 1/2"

1шт.

7

H44529

AXLE PIN

clevis

1шт.

8

H423046

LINK

steering, and attachment lift valve

2шт.

9

H44529

AXLE PIN

clevis

1шт.

10

432-48

COTTER PIN,1/16" x 1/2"

1шт.

11

H674732

SLIDE VALVE

ASSEMBLY control, steering and attachment lift, parts list Figure 05-010 , see Figure 05-006 for mounting

1шт.
