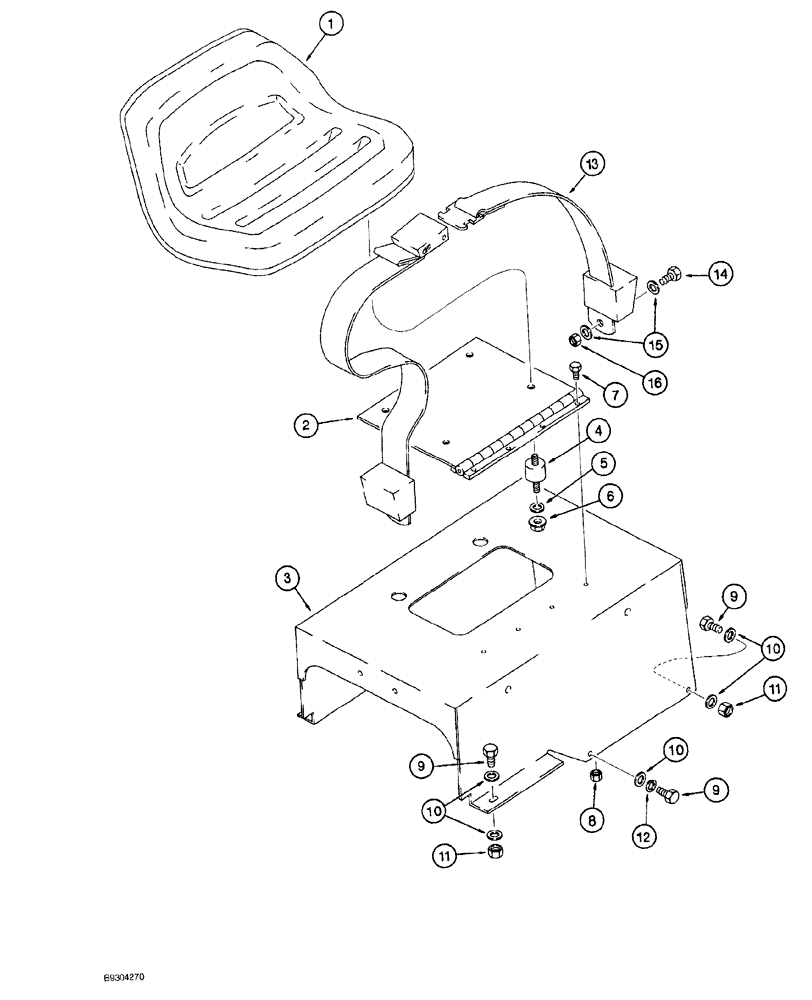

Запчасти Case MAXI-SNEAKER (09-008) - SEAT AND SEAT MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H436146

SEAT

ASSEMBLY operator's, brown, models with brown trim without seat interlock, parts list Figure 09-010

1шт.

1

179332A1

SEAT

ASSEMBLY operator's, gray, models with gray trim with seat interlock, contains no separately serviceable parts

1шт.

2

H673762

PLATE ASSY.

seat mounting, models without seat interlock

1шт.

2a

194089A1

PLATE

seat mounting, models with seat interlock

1шт.

3

111162A1

SUPPORT

seat

1шт.

4

H359216

MOUNTING PARTS

INSULATOR vibration, seat, rubber

4шт.

5

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

7

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

8

232-4114

LOCK NUT,1/4"-20, GC

4шт.

9

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

10

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

4шт.

11

232-4115

LOCK NUT,5/16"-18, GC

4шт.

12

492-11031

LOCK WASHER,5/16"

2шт.

13

H651646

SAFETY BELT ,45.70 mm W

Retractable

1шт.

14

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

2шт.

15

495-21050

WASHER,7/16"

(Flat, 1/2 x 1-1/4 x 5/64")

4шт.

16

230-4717

LOCK NUT,7/16"-20, GA

hex, self locking, 7/16 inch NF

2шт.
