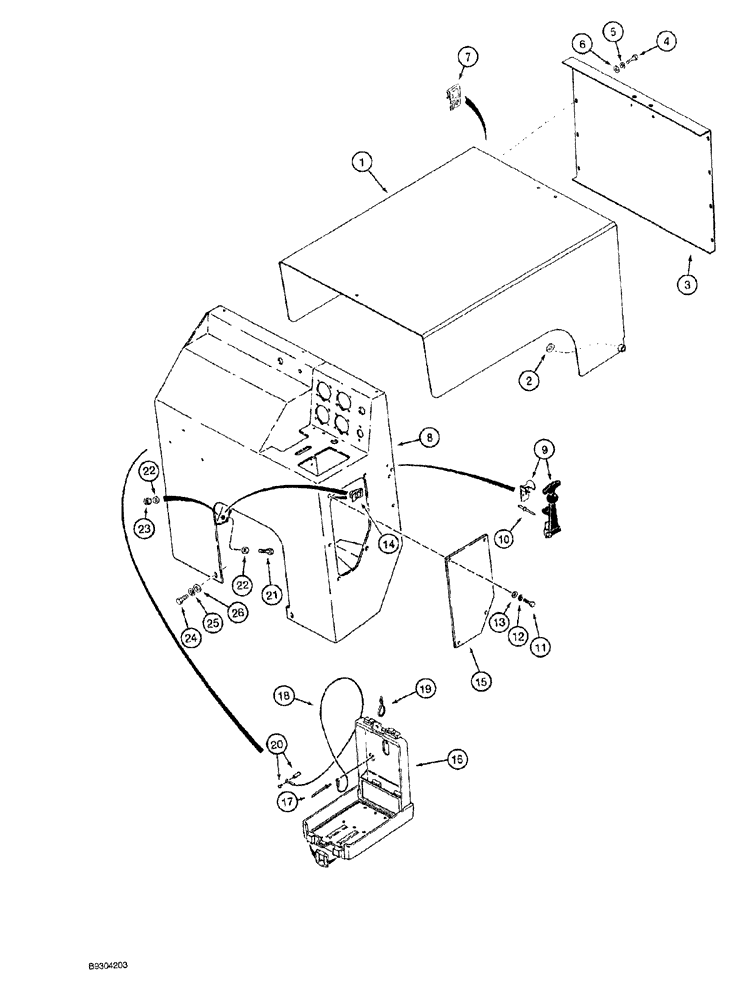

Запчасти Case MAXI-SNEAKER (09-006) - HOOD, GRILLE AND CONSOLE (09) - CHASSIS/ATTACHMENTS

1

110676A1

HOOD

engine

1шт.

2

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

3

111084A1

GRILLE

SCREEN

1шт.

4

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

9шт.

5

492-11025

LOCK WASHER,1/4"

9шт.

6

H426767

WASHER

flat, 9/32 x 5/8 x 3/64 inch

9шт.

7

131-631

SPRING NUT,U, Ret, 1/4"-20

U-type, 1/4 inch NC

9шт.

8

111085A3

BRACKET

CONSOLE tractor

1шт.

9

H628263

LATCH ASSY.

retainer, hood

2шт.

10

151-558

RIVET,Pop, 3/16" x .450"

break mandrel, 3/16 x 1/2 inch

8шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

12

492-11031

LOCK WASHER,5/16"

4шт.

13

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

4шт.

14

H346650

NUT

U-type, 5/16 inch NC

4шт.

15

H433799

COVER

PANEL console

1шт.

16

R46464

CASE

BOX operators manual

1шт.

17

151-522

RIVET,Pop, 3/16" x .575"

Break mandrel

3шт.

18

D126821

CABLE

manual retaining

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

20

R46463

SCREW,0.18" x 0.75"

POST manual retaining, 3/16 x 3/4 inch

1шт.

21

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

22

496-21041

WASHER,13/32" x 13/16" x .089", HDN

8шт.

23

232-4116

NUT,3/8"-16, GC

4шт.

24

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

26

H274894

WASHER

flat, special

2шт.
