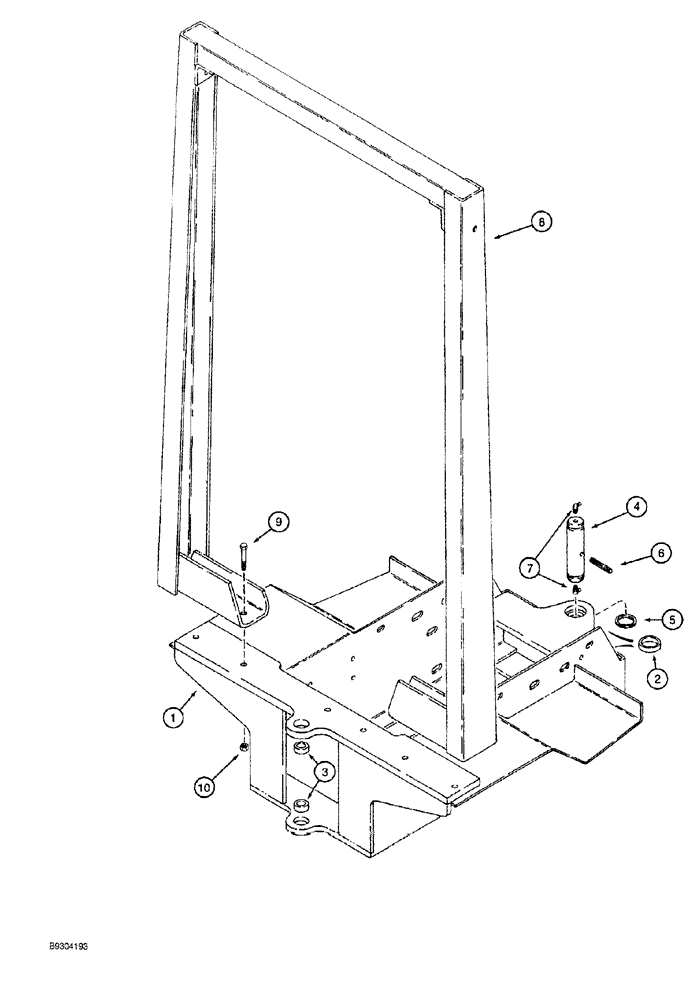

Запчасти Case MAXI-SNEAKER (09-004) - REAR FRAME AND ROPS CANOPY (09) - CHASSIS/ATTACHMENTS

1

142584A1

CHASSIS

FRAME rear, Replaces: 110666A1 rear frame on P40 plow, use 142584A1 for both P40 and P75 plows, Includes: Ref. 2 and 3

1шт.

2

H179077

BUSHING

pivot pin

2шт.

3

D34818

BUSHING,25.63mm ID x 34.92mm OD x 19.05mm L

pivot plate

2шт.

4

H371054

PIVOT PIN

1шт.

5

H257915

SHIM,0.813mm Thk

SHIM, (.031"), Pivot pin 0.813mm Thk

1шт.

6

138-314

LOCK PIN,9.53mm OD x 57.15mm L, Coiled

1шт.

7

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

8

REF

INSTRUCTION

CANOPY ROPS, machinery item, order from Machinery Price List

1шт.

9

426-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

4шт.

10

232-4118

NUT,1/2"-13, GC

4шт.
